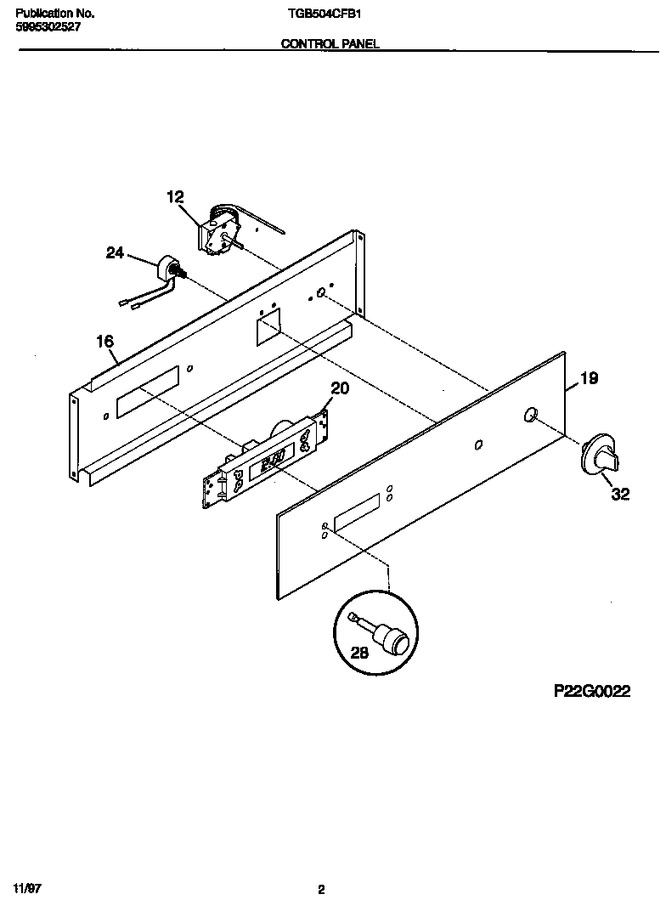

02 - Control Panel


03 - Burner


04 - Body


05 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	318058500		Thermostat-oven		Appelez-nous	-
16	318116900		Plate,instrument Mtg		Appelez-nous	-
19	318000002		Panel-control,glass ,black		Appelez-nous	-
20	318012300		Clock/timer,electronic ,t.o.d.		Appelez-nous	-
24	316090900		Switch-light/lamp				$ 95.18
28	5303311122		Button-clock		Appelez-nous	-
32	318016807		Knob-thermostat		Appelez-nous	-
*88640	5303308450		Screw, 8 X 3/8, Clock/door		Appelez-nous	-
*88641	318110700		Bracket-light Switch		Appelez-nous	-
*88642	318106003		Insulation,(2)		Appelez-nous	-
*88643	318106004		Insulation,(1)		Appelez-nous	-
*88644	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
