| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
67466-1 |
|
Cup, Shelf |
10 |
Appelez-nous
|
- |
|
|
|
| 2 |
67353-1 |
|
Shield, Air Directional |
10 |
Appelez-nous
|
- |
|
|
|
| 3 |
70034-1 |
|
Retainer, Air Return |
10 |
Appelez-nous
|
- |
|
|
|
| 4 |
67297-6 |
|
Cover, Coil Upper |
10 |
Appelez-nous
|
- |
|
|
|
| 5 |
68058-1 |
|
Switch, Interlock |
10 |
Appelez-nous
|
- |
|
|
|
| 6 |
70136-1 |
|
Trim, Shelf (rear) |
10 |
Appelez-nous
|
- |
|
|
|
| 7 |
WP489478 |
 |
Screw (Replaces: 400017-1) |
10 |
|
|
$ 6.98 |
|
|
| 8 |
68946-6 |
|
Seal |
10 |
Appelez-nous
|
- |
|
|
|
| 9 |
66325-20 |
|
Seal |
10 |
|
|
$ 8.22 |
|
|
| 10 |
68974-3 |
|
Receptacle, Bulb |
10 |
Appelez-nous
|
- |
|
|
|
| 11 |
WP67002552 |
 |
Bulb, Light (40w-230v) (Replaces: 24082-1) |
10 |
|
Immediately |
$ 10.58 |
|
|
| 12 |
W11384469 |
 |
Switch, Light (Replaces: 66987-1) |
10 |
|
Immediately |
$ 33.51 |
|
|
| 13 |
67292-1 |
|
Shield, Light |
10 |
Appelez-nous
|
- |
|
|
|
| 14 |
W11233072 |
 |
Screw (Replaces: 400015-36) |
10 |
|
Immediately |
$ 12.62 |
|
|
| 14 |
68551-1 |
|
Bracket, Motor |
10 |
Appelez-nous
|
- |
|
|
|
| 15 |
69519-1 |
|
Glide, Basket |
10 |
Appelez-nous
|
- |
|
|
|
| 16 |
69298-2 |
|
Motor, Fan |
10 |
Appelez-nous
|
- |
|
|
|
| 16 |
403067-1 |
|
Screw |
10 |
Appelez-nous
|
- |
|
|
|
| 16 |
69593-1 |
|
Wire Harness, Frz. Adapter |
10 |
Appelez-nous
|
- |
|
|
|
| 17 |
52120-4 |
|
Blade, Evaporator Fan |
10 |
Appelez-nous
|
- |
|
|
|
| 17 |
420092-900 |
|
Washer, Spring |
10 |
Appelez-nous
|
- |
|
|
|
| 18 |
WP488729 |
 |
Screw (Replaces: 9986-45) |
10 |
|
Immediately |
$ 7.01 |
|
|
| 18 |
64856-1 |
|
Bracket, Fan Motor |
10 |
Appelez-nous
|
- |
|
|
|
| 19 |
67225-2 |
|
Shield, Fan |
10 |
Appelez-nous
|
- |
|
|
|
| 20 |
67335-3 |
|
Cover, Coil Lower |
10 |
Appelez-nous
|
- |
|
|
|
| 20 |
W11233072 |
|
Screw (Replaces: 400015-36) |
10 |
|
Immediately |
$ 12.62 |
|
|
| 21 |
67352-1 |
|
Orifice, Frz. Control (outlet) |
10 |
Appelez-nous
|
- |
|
|
|
| 22 |
67288-1 |
|
Bracket, Mounting |
10 |
Appelez-nous
|
- |
|
|
|
| 23 |
70135-27 |
|
Trim, Lower Basket |
10 |
Appelez-nous
|
- |
|
|
|
| 24 |
52526-1 |
|
Grommet |
10 |
Appelez-nous
|
- |
|
|
|
| 25 |
WP67006908 |
 |
Screw (Replaces: 400022-1) |
10 |
|
Immediately |
$ 7.16 |
|
|
| 26 |
69219-1 |
|
Grommet |
10 |
Appelez-nous
|
- |
|
|
|
| 27 |
26527-11 |
|
Tube, Drain |
10 |
Appelez-nous
|
- |
|
|
|
| 28 |
67178-8 |
|
Shelf, Wire |
10 |
Appelez-nous
|
- |
|
|
|
| 29 |
70135-19 |
|
Trim, Shelf |
10 |
Appelez-nous
|
- |
|
|
|
| 30 |
69350-2 |
|
Basket, Frz Wire |
10 |
Appelez-nous
|
- |
|
|
|
| 31 |
69314-1 |
|
Seal Cover (side) |
10 |
Appelez-nous
|
- |
|
|
|
| 32 |
WPB5705307 |
 |
Tubing, Valve To Grommet (Replaces: 67579-2) |
10 |
|
|
$ 11.19 |
|
|
| 33 |
WPM0114003 |
 |
Clamp, Spring (Replaces: 60333-4) |
10 |
|
|
$ 9.95 |
|
|
| 34 |
WP488366 |
 |
Clamp, Feeder Tube (Replaces: 23197-8) |
10 |
|
|
$ 10.06 |
|
|
| 35 |
67837-1 |
|
Insulation, Air Return |
10 |
Appelez-nous
|
- |
|
|
|
| 36 |
69348-2 |
|
Basket, Frz Wire |
10 |
Appelez-nous
|
- |
|
|
|
| 37 |
70135-26 |
|
Trim, Upper Basket |
10 |
Appelez-nous
|
- |
|
|
|
| 38 |
69349-2 |
|
Basket, Pizza |
10 |
Appelez-nous
|
- |
|
|
|
| 39 |
70135-23 |
|
Trim, Pizza Basket |
10 |
Appelez-nous
|
- |
|
|
|
| 40 |
67179-4 |
|
Shelf, Frz. |
10 |
Appelez-nous
|
- |
|
|
|

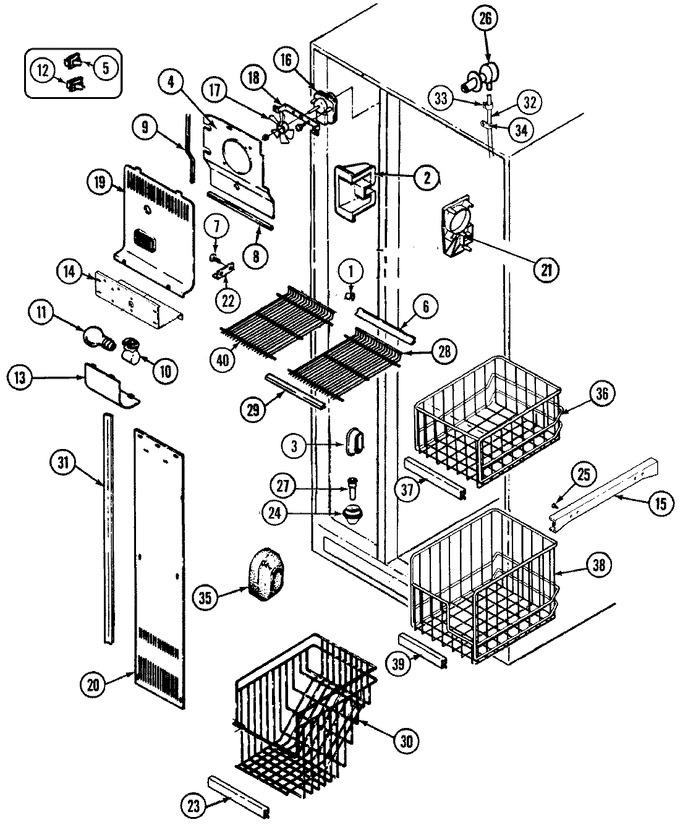

View Diagram in Separate Window
