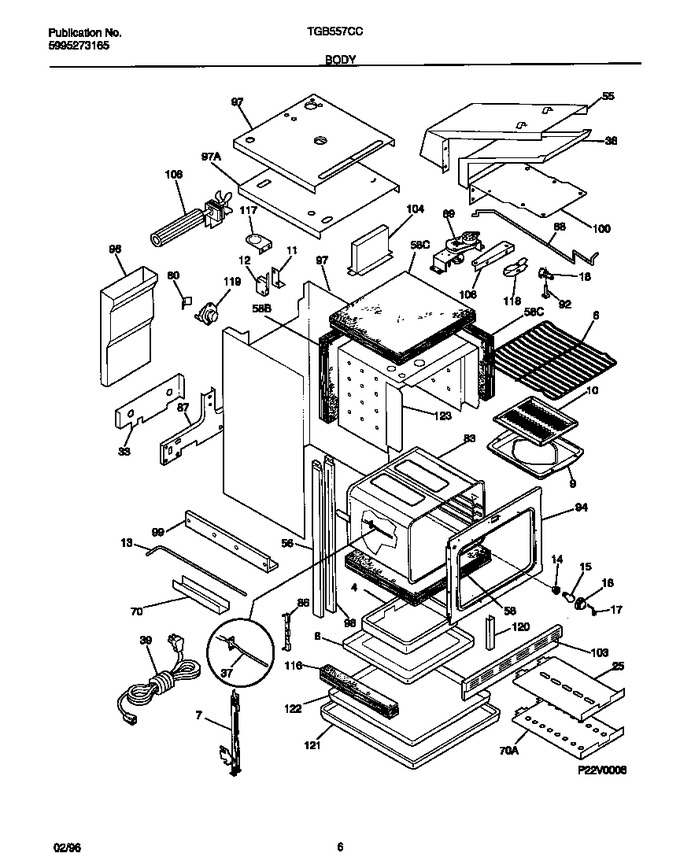

01 - Cover
02 - Backguard
03 - Burner
04 - Body
05 - Drawer/door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 5303280375 | Box-oven Burner |
|
- | |||||
| 6 | 5303299366 | Rack-oven |
|
- | |||||
| 7 | 316009400 | Hinge-oven Door, (2) |
|
- | |||||
| 8 | 5303296327 | Panel-oven Bottom |
|
- | |||||
| 9 | 5303310521 | Pan-broiler |
|
- | |||||
| 10 | 5303310520 | Insert-broiler Pan |
|
- | |||||
| 11 | 5303308448 | Bracket-latch |
|
- | |||||
| 12 | 5303275924 | Switch-door |
|
$ 92.03 | |||||
| 13 | 3202077 | Rod-light Switch |
|
- | |||||
| 14 | 08011171 | Socket-light/lamp, Oven |
|
- | |||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 3204483 | Retainer-lens |
|
- | |||||
| 18 | 3051648 | Latch-door |
|
- | |||||
| 25 | 5303210706 | Shield-insulation, Base |
|
- | |||||
| 33 | 5303302719 | Shield, Rear Wall |
|
- | |||||
| 36 | 3203725 | Flue |
|
- | |||||
| 37 | 5303210806 | Probe-oven Temp |
|
- | |||||
| 39 | 5303308453 | Cord,electric Power |
|
- | |||||
| 55 | 5303210822 | Shield-flue |
|
- | |||||
| 56 | 5303280347 | Trim-bodyside |
|
- | |||||
| 58 | 5303210713 | Insulation, Oven Back |
|
- | |||||
| 58 | 5303210708 | Insulation, Oven Bottom |
|
- | |||||
| 70 | 5303210846 | Shield-insulation |
|
- | |||||
| 70 | 5303210844 | Shield-heat, Lower |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 83 | 5303296407 | Liner-oven Assy |
|
- | |||||
| 86 | 3201631 | Channel, Hinge |
|
$ 58.22 | |||||
| 87 | 5303308443 | Bracket-safety Valve |
|
- | |||||
| 88 | 3016241 | Rod-latch |
|
- | |||||
| 92 | 5308012004 | Stud - Axle |
|
$ 8.29 | |||||
| 94 | 5303296326 | Frame-front |
|
- | |||||
| 96 | 5303210839 | Duct-blower |
|
- | |||||
| 97 | 5303210683 | Wrapper, Top |
|
- | |||||
| 99 | 5303299686 | Support,adjustable |
|
- | |||||
| 100 | 5303302715 | Shield,flue ,bottom |
|
- | |||||
| 103 | 5303316735 | Trim-base |
|
- | |||||
| 104 | 3203730 | Adapter-flue |
|
- | |||||
| 106 | K001324830 | Bracket-motor Mtg |
|
- | |||||
| 108 | 318073000 | Motor-blower |
|
- | |||||
| 117 | 5303302718 | Bracket-thermo Protector |
|
- | |||||
| 118 | 3019069 | Housing-latch |
|
- | |||||
| 119 | 5303210644 | Switch-thermo |
|
- | |||||
| 120 | 3203688 | Support,oven Front |
|
- | |||||
| 121 | 5303305036 | Wrapper-base |
|
- | |||||
| 122 | 5303210851 | Shield-insulation, Base |
|
- | |||||
| 123 | 3203684 | Shield-oven, Top & Sides |
|
- | |||||
| *40285 | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| *40286 | 3131903 | Bumper |
|
$ 55.36 | |||||
| *40287 | 5303210709 | Insulation, Adaptor |
|
- | |||||
| *40288 | 5303210841 | Shield-bodyside |
|
- | |||||
| *40289 | 5303300195 | Screw, Terminal Block |
|
- | |||||
| *40290 | 5303308447 | Screw, Switch-ovn Lght |
|
- | |||||
| *40291 | 5303308449 | Fastener |
|
- | |||||
| 116A | 5303210711 | Insulation-bottom, Sides, (2) |
|
- | |||||
| 116B | 5303210712 | Insulation-bottom, Top |
|
- | |||||
| 58A | 5303210707 | Insulation, Top & Sides |
|
- | |||||
| 58B | 5303210714 | Insulation, Oven Top |
|
- | |||||
| 89A | 5303269766 | Motor-latch/lock |
|
- | |||||
| 89B | 154079601 | Nut (not Illustrated) (Replaces: 3201885) |
|
$ 0.41 | |||||
| 97A | 5303210681 | Wrapper, Top |
|
- | |||||
| 97B | 5303210686 | Wrapper, Back & Sides |
|
- | |||||
| 98A | 3203664 | Trim-side, Inner, Rh |
|
- | |||||
| 98B | 3203665 | Trim-side, Inner, Lh |
|
- |
