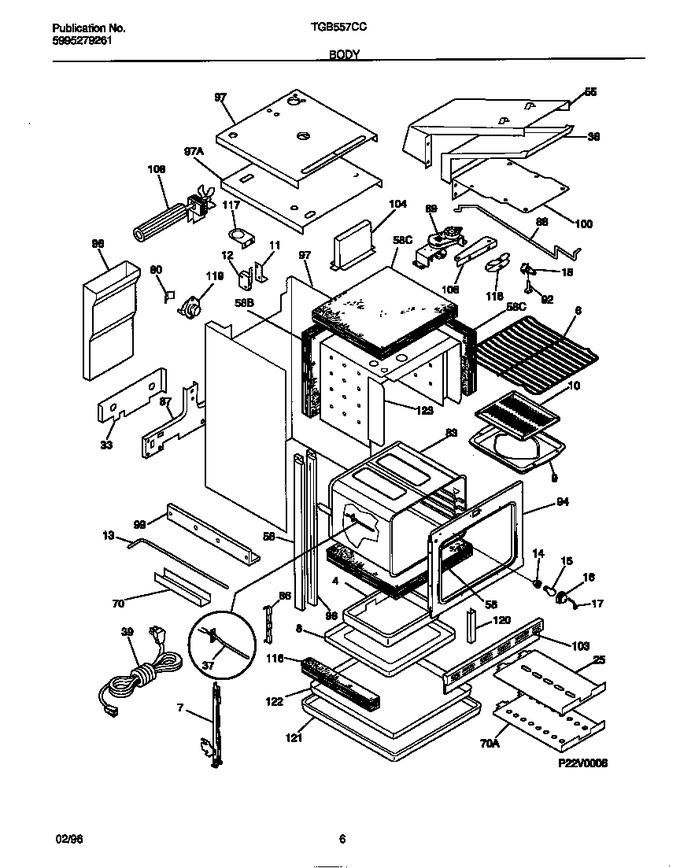

01 - Cover
02 - Control Panel
03 - Burner
04 - Body
05 - Door/drawer
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303210683 | Wrapper, Top |
|
- | |||||
| 2 | 5303210681 | Wrapper, Top |
|
- | |||||
| 4 | 5303280375 | Box-oven Burner |
|
- | |||||
| 6 | 5303299366 | Rack-oven |
|
- | |||||
| 8 | 318121400 | Panel-oven Bottom |
|
- | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 11 | 5303308448 | Bracket-light Switch |
|
- | |||||
| 14 | 08011171 | Socket-light/lamp, Oven |
|
- | |||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 3204483 | Retainer-lens |
|
- | |||||
| 18 | 3051648 | Latch-door |
|
- | |||||
| 25 | 5303210844 | Shield-heat, Lower |
|
- | |||||
| 28 | 3015722 | Clip-wire |
|
- | |||||
| 33 | 5303302719 | Shield, Rear Wall |
|
- | |||||
| 36 | 3203725 | Flue |
|
- | |||||
| 37 | 5303210806 | Probe-oven Temp |
|
- | |||||
| 39 | 5303308453 | Cord,electric Power |
|
- | |||||
| 41 | 3019063 | Retainer-door |
|
- | |||||
| 55 | 5303210822 | Shield-flue |
|
- | |||||
| 56 | 5303318690 | Screw, 6-20 X 1/4, Side Trim (not Illustrated) |
|
- | |||||
| 56 | 5303280347 | Trim-bodyside |
|
- | |||||
| 58 | 5303210714 | Insulation, Oven Top |
|
- | |||||
| 58 | 5303210707 | Insulation, Top & Sides |
|
- | |||||
| 58 | 5303210708 | Insulation, Oven Bottom |
|
- | |||||
| 58 | 5303210713 | Insulation, Oven Back |
|
- | |||||
| 70 | 5303210843 | Shield-insulation |
|
- | |||||
| 70 | 318071410 | Shield-insulation |
|
- | |||||
| 71 | 5303308476 | Shield-rear Wall |
|
- | |||||
| 76 | 318056130 | Front-oven |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 81 | 3201632 | Spacer-oven |
|
- | |||||
| 83 | 318089401 | Liner-oven Assy |
|
- | |||||
| 86 | 3201631 | Channel, Hinge |
|
$ 58.22 | |||||
| 87 | 5303308443 | Bracket-safety Valve |
|
- | |||||
| 88 | 3016241 | Rod-latch |
|
- | |||||
| 92 | 5308012004 | Stud - Axle |
|
$ 8.29 | |||||
| 96 | 5303210839 | Duct-blower |
|
- | |||||
| 97 | 318066800 | Wrapper, Back & Sides |
|
- | |||||
| 99 | 5303299686 | Support,adjustable |
|
- | |||||
| 100 | 5303302715 | Shield,flue ,bottom |
|
- | |||||
| 102 | 3203688 | Support,oven Front |
|
- | |||||
| 103 | 5303316735 | Trim-base |
|
- | |||||
| 104 | 3203730 | Adapter-flue |
|
- | |||||
| 106 | K001324830 | Bracket-motor Mtg |
|
- | |||||
| 108 | 318073000 | Motor-blower |
|
- | |||||
| 117 | 5303302718 | Bracket-thermo Protector |
|
- | |||||
| 118 | 5303308461 | Bracket-latch |
|
- | |||||
| 119 | 5303210644 | Switch-thermo |
|
- | |||||
| 121 | 5303305036 | Wrapper-base |
|
- | |||||
| 122 | 5303210706 | Shield-insulation, Base |
|
- | |||||
| 126 | 3016303 | Clip-insulator Retainer |
|
- | |||||
| *83765 | 3018802 | Clip-cable |
|
- | |||||
| *83766 | 3131903 | Bumper |
|
$ 55.36 | |||||
| *83767 | 5304513507 | Bushing - Snap (Replaces: 3201437) |
|
$ 9.10 | |||||
| *83768 | 3201881 | Lockwasher |
|
- | |||||
| *83769 | 318108900 | Shield,insulation ,1.25x1.0x12.9 |
|
- | |||||
| *83770 | 318119300 | Shield,bodyside |
|
- | |||||
| *83771 | 318123600 | Shield, Broiler |
|
- | |||||
| *83772 | 5303210851 | Shield, Burner Box |
|
- | |||||
| *83773 | 5303210705 | Angle-burner Box |
|
- | |||||
| *83774 | 5303210709 | Insulation, Adaptor |
|
- | |||||
| *83775 | 5303210710 | Insulation, Oven Bottom |
|
- | |||||
| *83776 | 5303308449 | Fastener |
|
- | |||||
| *83777 | 5303317978 | Clamp, Cable |
|
- | |||||
| *83778 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *83779 | 5303300195 | Screw, Terminal Block |
|
- | |||||
| *83780 | 5303311528 | Screw, Oval Hd, 6-20 X 5/8, Black |
|
- | |||||
| *83781 | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| *83782 | 3051070 | Screw, Hex Washer Head, 10-24 X 7/16, Special |
|
- | |||||
| 116A | 5303210711 | Insulation-bottom, Sides, (2) |
|
- | |||||
| 116B | 5303210712 | Insulation-bottom, Top (not Illustrated) |
|
- | |||||
| 12A | 5303275924 | Switch-door |
|
$ 92.03 | |||||
| 12B | 3131095 | Fastener, Switch (not Illustrated) |
|
- | |||||
| 12C | 5303308447 | Screw, Switch-ovn Lght (not Illustrated) |
|
- | |||||
| 13A | 3202077 | Rod-light Switch |
|
- | |||||
| 13B | 3204114 | Spring-rod (not Illustrated) |
|
- | |||||
| 89A | 5303269766 | Motor-latch/lock |
|
- | |||||
| 89B | 154079601 | Nut (not Illustrated) (Replaces: 3201885) |
|
$ 0.41 | |||||
| 91A | 3019069 | Housing-latch |
|
- | |||||
| 91B | 3051647 | Housing-door Latch |
|
- | |||||
| 98A | 318029400 | Trim-side, Inner, Rh |
|
- | |||||
| 98B | 318029401 | Trim-side, Inner, Lh |
|
- |
