SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Burner


04 - Body


05 - Door/drawer

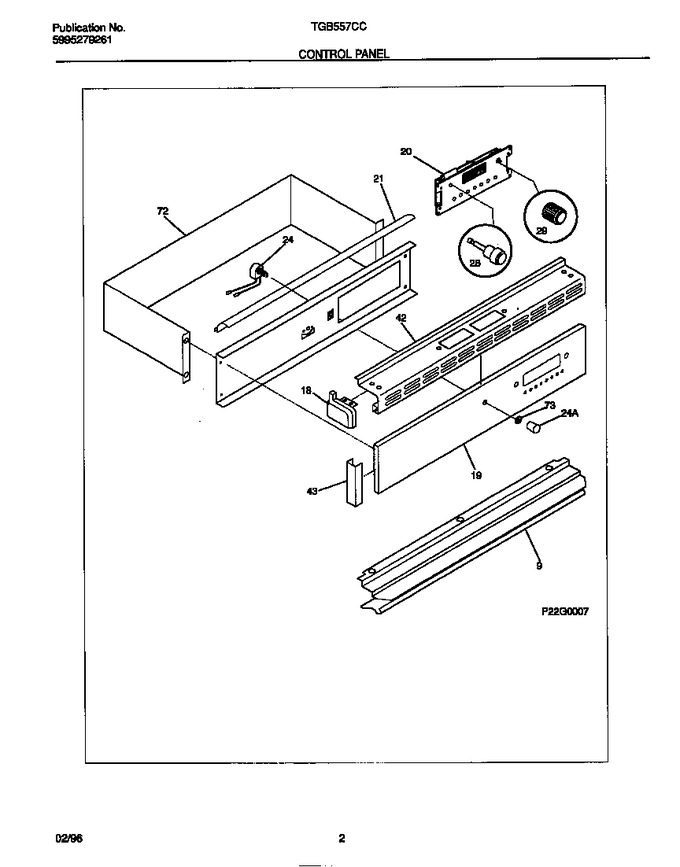

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	5303271089		Trim-splasher, White		Appelez-nous	-
16	318023201		Plate, Instrument Mtg		Appelez-nous	-
18	5303310389		End Cap, White, Lh		Appelez-nous	-
18	5303310391		End Cap, White, Rh		Appelez-nous	-
19	318000108		Panel-control, Glass		Appelez-nous	-
20	5303280365		Clock/timer, Electronic		Appelez-nous	-
21	5303131766		Screw, 6-32 X 3/8``, White (not Illustrated)				$ 10.87
21	5303271091		Trim-canopy/shield, White		Appelez-nous	-
24	5303299547		Knob-light Switch, White		Appelez-nous	-
28	5303304675		Knob-control, White		Appelez-nous	-
29	5303302401		Knob-clock/timer, White		Appelez-nous	-
30	5303316744		Nut-decorative, White		Appelez-nous	-
42	5303308462		Trim-vent		Appelez-nous	-
66	3202093		Bumper, Rubber, (4)		Appelez-nous	-
72	5303210685		Wrapper-shield		Appelez-nous	-
*83760	5303300414		Spacer, Cork & Rubber				$ 13.18
*83761	5303308450		Screw, 8 X 3/8, Clock/door		Appelez-nous	-
24A	318090001		Switch-light/lamp		Appelez-nous	-
24B	5303302303		Nut, Hex, Light Switch (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
