Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	5303271089		Trim-splasher, White		Appelez-nous	-
16	318022300		Plate, Instrument Mtg		Appelez-nous	-
18	5303310389		End Cap, White, Lh		Appelez-nous	-
18	5303310391		End Cap, White, Rh (not Illustrated)		Appelez-nous	-
19	318000112		Panel-control, Glass		Appelez-nous	-
20	318010200		Clock/timer, Electronic		Appelez-nous	-
21	5303271091		Trim-canopy/shield, White		Appelez-nous	-
24	5303299547		Knob-light Switch, White		Appelez-nous	-
28	316080600		Shaft-push Button, Clock/timer/eoc				$ 49.41
29	318017801		Knob-clock, (11)		Appelez-nous	-
42	5303308462		Trim-vent		Appelez-nous	-
72	5303210685		Wrapper-shield		Appelez-nous	-
*62840	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*62841	5303300414		Spacer, Cork & Rubber				$ 13.18
*62842	5303308450		Screw, 8 X 3/8, Clock/door		Appelez-nous	-
*62843	5304414648		Screw, 10-24 X 1/4, Rail Mtg, Control Pnl   (Replaces: 5303308458)				$ 14.18
*62845	5303316744		Nut-decorative, White		Appelez-nous	-
24A	318090001		Switch-light/lamp		Appelez-nous	-
24B	5303302303		Nut, Hex, Light Switch (not Illustrated)		Appelez-nous	-

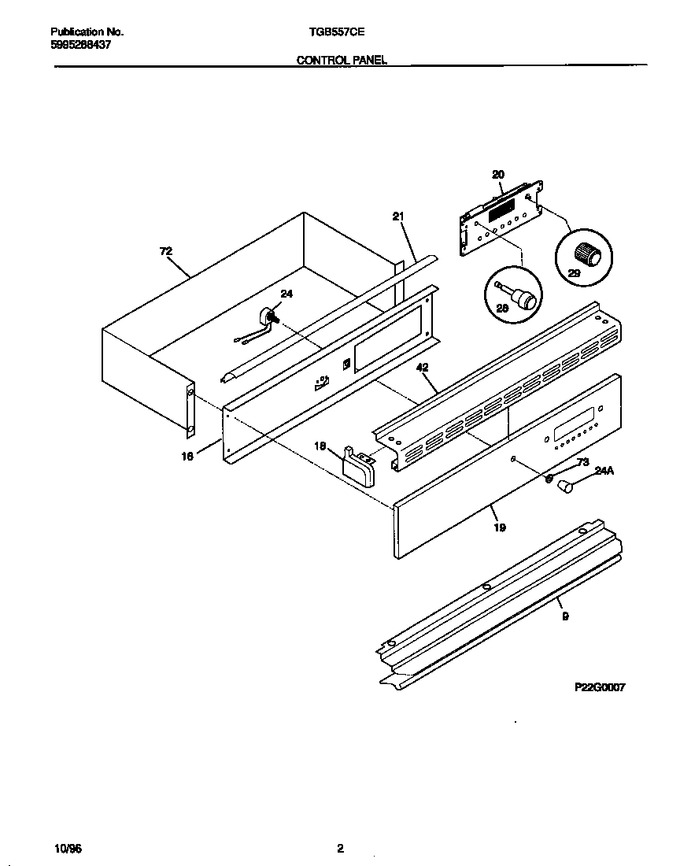

    View Diagram in Separate Window       Print Part List
