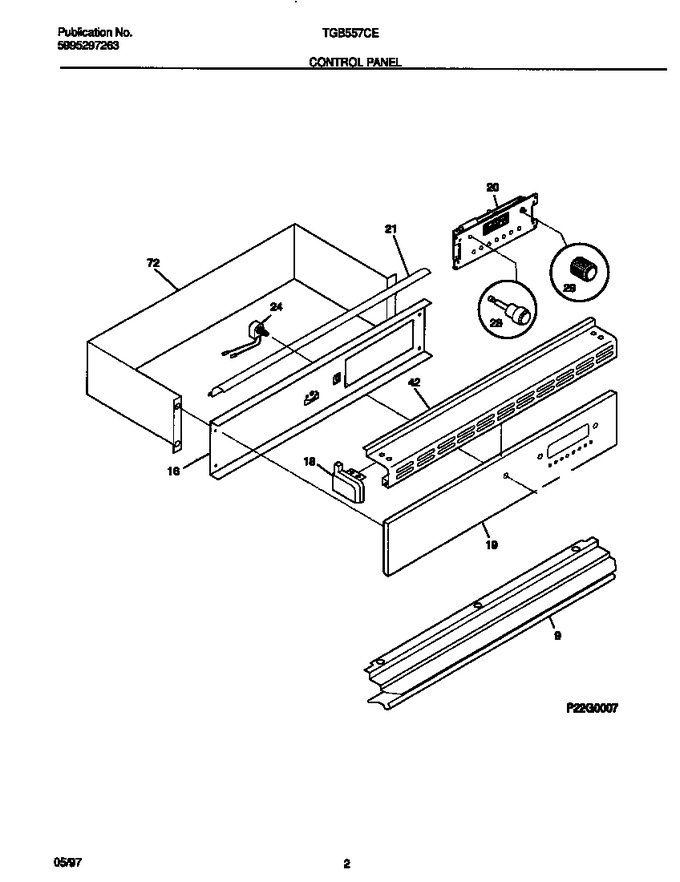

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	5303271089		Trim-splasher, White		Appelez-nous	-
16	318022300		Plate, Instrument Mtg		Appelez-nous	-
18	5303310389		End Cap, White, Lh		Appelez-nous	-
18	5303310391		End Cap, White, Rh (not Illustrated)		Appelez-nous	-
19	318000112		Panel-control, Glass		Appelez-nous	-
20	318010200		Clock/timer, Electronic		Appelez-nous	-
21	5303271091		Trim-canopy/shield, White		Appelez-nous	-
28	316080600		Shaft-push Button, Clock/timer/eoc, Black				$ 49.41
29	318017801		Knob-clock/timer, White		Appelez-nous	-
42	5303308462		Trim-vent		Appelez-nous	-
72	5303210685		Wrapper-shield		Appelez-nous	-
*03120	5303300411		Bezel-switch		Appelez-nous	-
*03121	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*03122	5303300414		Spacer, Cork & Rubber				$ 13.18
*03123	5303308450		Screw, 8 X 3/8, Clock/door		Appelez-nous	-
24A	5303280262		Switch-oven Light, Push		Appelez-nous	-
24B	5303302303		Nut, Hex, Light Switch (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
