01 - Cover
02 - Main Top

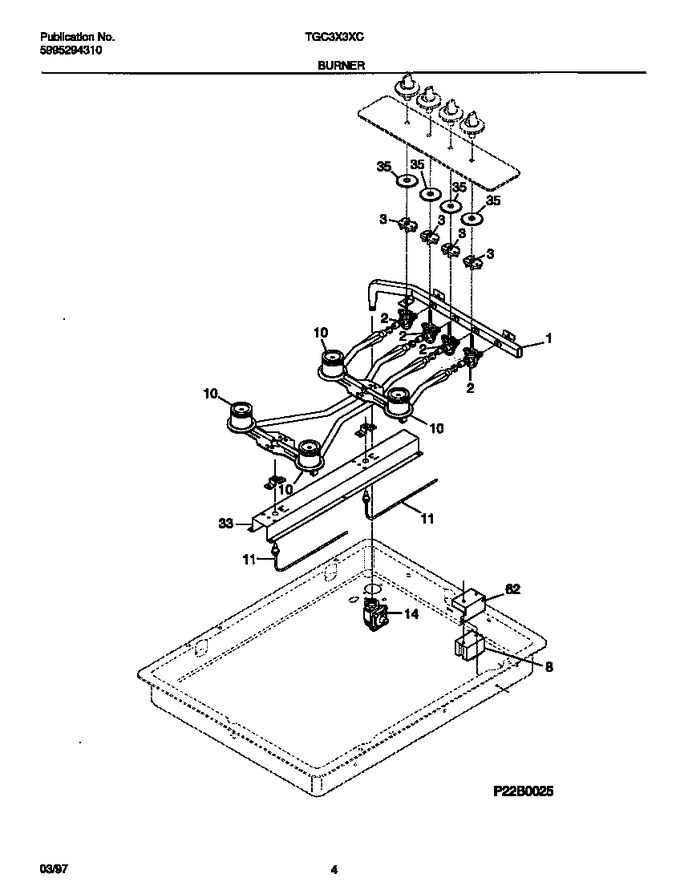

03 - Burner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 316032002 | Switch-ignitor, (5) |
|
$ 63.46 | |||||
| 8 | 5303912606 | Spark Module |
|
$ 134.67 | |||||
| 14 | 5308007974 | Regulator-pressure |
|
$ 309.02 | |||||
| 33 | 3201449 | Bracket-burner Mtg |
|
- | |||||
| 35 | 5303307978 | Bushing-insulation |
|
- | |||||
| 62 | 3201439 | Cover, Spark Module |
|
- | |||||
| *43722 | 5303307979 | Harness-wiring, Main |
|
- | |||||
| *43723 | 08016432 | Screw, Truss Head, 8-18 X 3/8, (4) |
|
- | |||||
| *43724 | 5303311306 | Screw, 8-18 X 3/8 |
|
- | |||||
| 10A | 3201432 | Burner - Top (lf) |
|
- | |||||
| 10B | 3201433 | Burner - Top (lr) |
|
- | |||||
| 10C | 3201434 | Burner - Top (rf) |
|
- | |||||
| 10D | 3201435 | Burner - Top (rr) |
|
- | |||||
| 11A | 318148600 | Ignitor-top Burner |
|
- | |||||
| 11B | 318148601 | Ignitor-top Burner |
|
- | |||||
| 1A | 318077701 | Manifold Pipe |
|
- | |||||
| 1B | 08011955 | Screw, Pan Head, 10-24 X 3/8, Square Drive (not Illustrated) |
|
Immediately | $ 9.36 | ||||
| 2A | 316036600 | Valve-top Burner, (4), With Mtg Screws |
|
- | |||||
| 2B | 316048200 | Screw-top Valve Mtg, Hex Washer Head, 1/4-20 X 0.31, (4), W/gasket (not Illustrated) |
|
- |
