01 - Body
02 - Door/drawer
03 - Door/drawer (ser. Pre. 13)
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

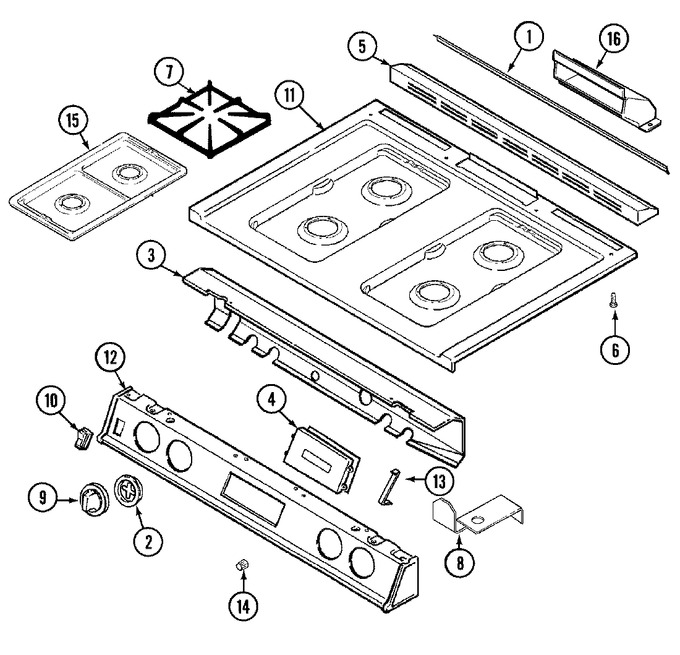

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7201P061-60 | Gasket | 10 |
|
$ 4.83 | ||||
| 2 | 7740P058-60 | Bezel, Knob (blk) | 10 |
|
$ 24.44 | ||||
| 3 | 74002588 | Cover, Manifold (rear) | 21 |
|
- | ||||
| 3 | 74001542 | Cover, Manifold (rear) | 10 |
|
- | ||||
| 4 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 4 | 74002299 | Clock (blk) | 19 |
|
- | ||||
| 4 | 7601P276-60 | Clock (blk) | 10 |
|
- | ||||
| 5 | 4825D001-59 | Cover, Vent Trim | 10 |
|
- | ||||
| 6 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 7 | 74001059 | Grate (blk) | 28 |
|
- | ||||
| 7 | 2003W027-00 | Grate (blk) | 10 |
|
- | ||||
| 7 | 74001653 | Grate (blk) | 36 |
|
- | ||||
| 7 | 74001059 | Grate (blk) | 38 |
|
- | ||||
| 8 | 3801F318-51 | Bracket, Top | 10 |
|
- | ||||
| 9 | WP74003781 | Knob, Valve (blk) (Replaces: 7733P084-60) | 10 |
|
$ 15.89 | ||||
| 10 | 7403P067-60 | Switch, Rocker (blk) | 10 |
|
$ 91.35 | ||||
| 11 | 2001W089-09 | Top, Main (blk) | 10 |
|
- | ||||
| 12 | 7712P196-60 | Panel, Control (blk) | 10 |
|
- | ||||
| 12 | 74003359 | Panel, Control (blk) | 22 |
|
- | ||||
| 13 | 3801F349-51 | Bracket, Clock | 10 |
|
- | ||||
| 13 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | W10124350 | Not Required Part Or See Note | 19 |
|
- | ||||
| 14 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 10 |
|
$ 12.13 | ||||
| 15 | 5401A452-60 | Drip Bowl Kit (accessory) | 10 |
|
- | ||||
| 15 | 74001575 | Harness, Control/relay | 10 |
|
- | ||||
| 15 | 5170P228-60 | Harness, Sensor & Lock | 10 |
|
- | ||||
| 15 | 5195D105-60 | Harness, Burner Box | 10 |
|
- | ||||
| 15 | 5125A312-60 | Harness, Loose/burner Box | 10 |
|
- | ||||
| 16 | 16007437 | Manual, Use & Care | 19 |
|
- | ||||
| 16 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 16 | 3601F221-45 | Baffle, Vent Cover | 10 |
|
$ 28.30 | ||||
| 16 | 8113P066-60 | Manual, Use & Care | 10 |
|
- | ||||
| 17 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
