SELECT A DIAGRAM

01 - Cover

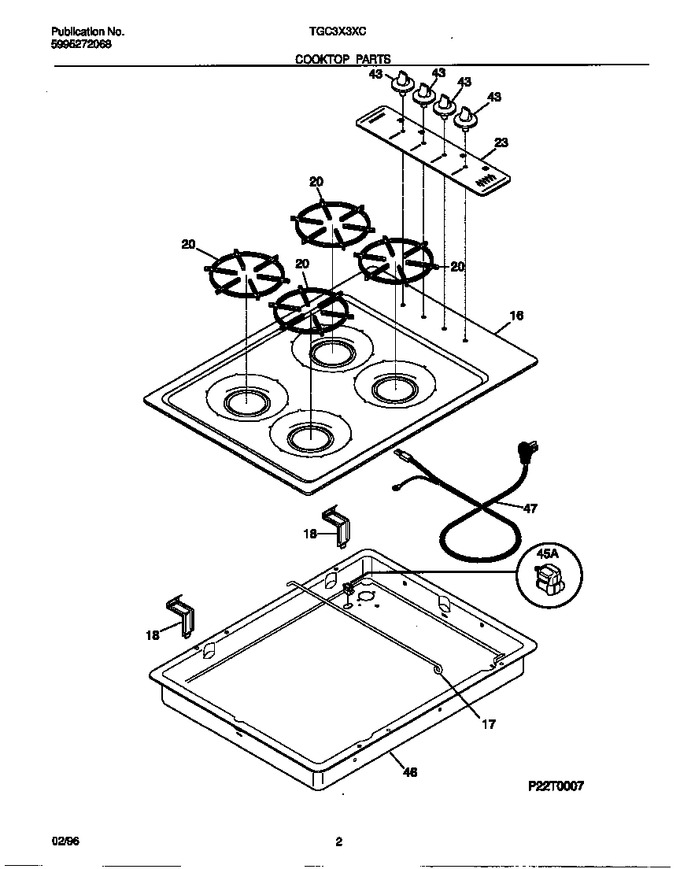

02 - Cooktop Parts


03 - Burner Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	5303311268		Main Top, White		Appelez-nous	-
16	5303305547		Channel-top Stiffener (not Illustrated)		Appelez-nous	-
17	3016817		Rod,maintop Support		Appelez-nous	-
18	5303311269		Hinge-main Top, (2)		Appelez-nous	-
20	316040807		Grate, (4)		Appelez-nous	-
23	318021204		Panel-control, Metal		Appelez-nous	-
43	318016206		Knob-control, (4)		Appelez-nous	-
45	5304513507		Bushing - Snap   (Replaces: 3201437)				$ 9.10
46	3201436		Burner Box		Appelez-nous	-
47	5303303991		Cord-electric Power				$ 96.50
*73640	5303311306		Screw, 8-18 X 3/8		Appelez-nous	-
*73641	5304453707		Screw, 8-32 X 3/8, (6)   (Replaces: 5303311333)			Immediately	$ 15.92

    View Diagram in Separate Window       Print Part List
