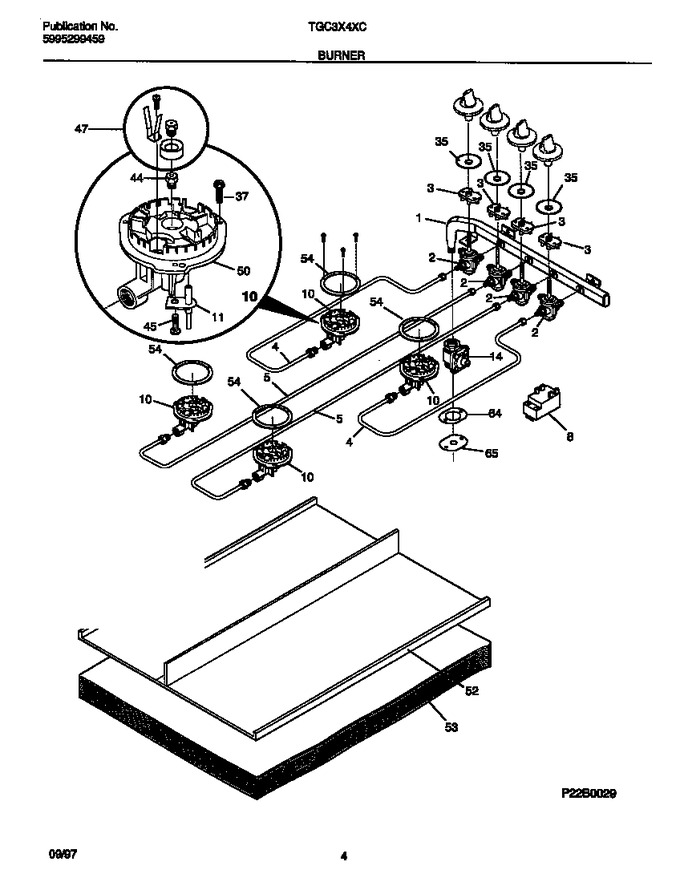

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316032002		Switch-ignitor, (4)				$ 63.46
4	5303305456		Tube-burner, Rf, Rr		Appelez-nous	-
5	5303305455		Tube-burner, Lf, Lr		Appelez-nous	-
8	5304505695		Spark Module   (Replaces: 5303280394)			Immediately	$ 68.16
10	318055001		Burner Assy-top, Sealed, 9000 Btu, (4), Includes, 11, 37		Appelez-nous	-
11	316011200		Ignitor-top Burner   (Replaces: 5303311262)			Immediately	$ 38.68
14	5308007974		Regulator-pressure				$ 309.02
35	5303307978		Bushing-insulation		Appelez-nous	-
37	316069301		Screw-burner Mtg, Hex Washer Head, M3 X 0.50   (Replaces: 316069300)				$ 2.99
44	318088700		Orifice-top Burner, 9000 Btu		Appelez-nous	-
45	316011100		Screw-ignitor Mtg, Self-tapping, M3 X 5.8				$ 3.41
47	5303308575		Lp Conversion Kit		Appelez-nous	-
50	5303302430		Burner-top, Small, (4)		Appelez-nous	-
52	5303209024		Shield-heat		Appelez-nous	-
53	5303209025		Insulation		Appelez-nous	-
64	5303304033		Retainer/bracket		Appelez-nous	-
65	5304506478		Seal, Rubber   (Replaces: 5303304032)				$ 11.34
1A	318077700		Manifold Pipe		Appelez-nous	-
1B	08011955		Screw, Pan Head, 10-24 X 3/8, Square Drive (not Illustrated)			Immediately	$ 9.36
2A	5303935042		Valve-top Burner, 2-position, (3)				$ 175.25
2B	316048200		Screw-top Valve Mtg, Hex Washer Head, 1/4-20 X 0.31, W/gasket (not Illustrated)		Appelez-nous	-
