Diagram # Part Number Description Series Availability Ships Price Add to Cart
3 5303307975 Bracket-support, Main Top Appelez-nous -
16 5303323986 Main Top, White Appelez-nous -
19 318066903 Pan-burner, Gray, (4) Appelez-nous -
20 318025000 Grate, Gray, (4) Appelez-nous -
21 318050500 Trim Ring, Gray, (3) Appelez-nous -
22 316011003 Cap-burner, Gray, Small, (2) Appelez-nous -
31 5303307931 Gasket, Pan Appelez-nous -
43 318016406 Knob-control, White Appelez-nous -
45 5304513507 Bushing - Snap   (Replaces: 3201437) Special Order $ 9.10

45 5303307933 Bushing, Top Burner Knob Appelez-nous -
46 5303307897 Burner Box Appelez-nous -
47 5303303991 Cord-electric Power Special Order $ 96.50


    View Diagram in Separate Window     Print Icon   Print Part List

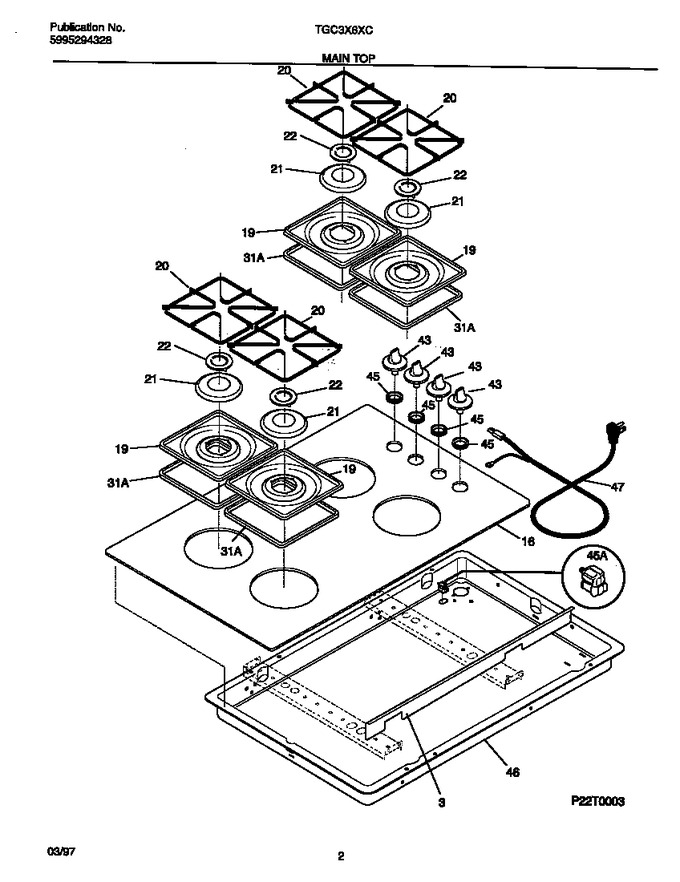

Diagram for TGC3X6XCS2
