SELECT A DIAGRAM

01 - Cover


02 - Main Top

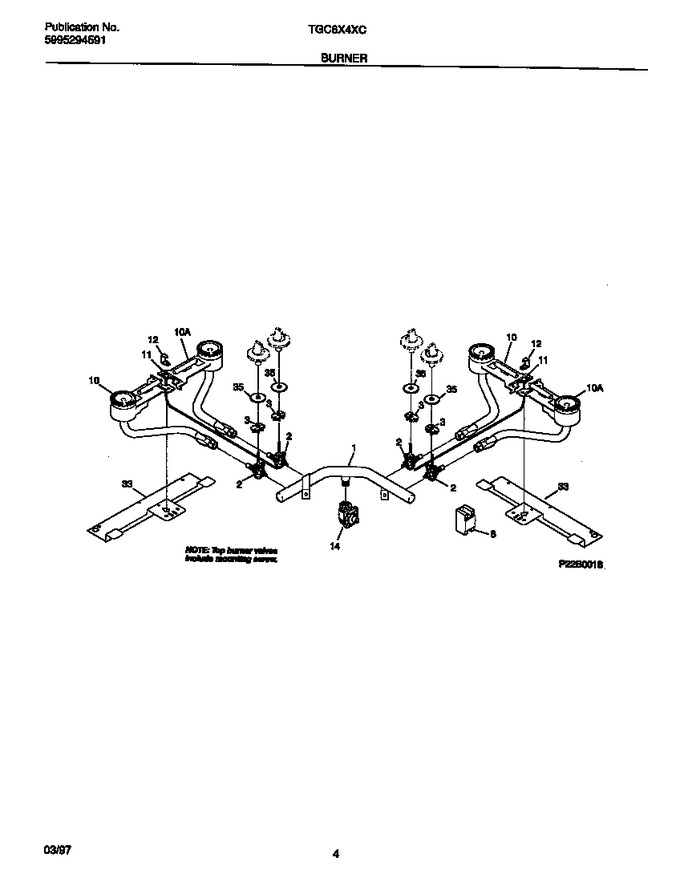

03 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	316009600		Valve-top Burner, (4), With Mtg Screws		Appelez-nous	-
3	316032001		Switch-igniter, (4)				$ 69.35
8	5303912606		Spark Module				$ 134.67
10	5303323982		Burner-top, Rf & Lr		Appelez-nous	-
10	5303323981		Burner-top, Lf & Rr		Appelez-nous	-
11	318148501		Ignitor-top Burner, Base, (2)		Appelez-nous	-
12	3016993		Retainer-ignitor		Appelez-nous	-
14	5308007974		Regulator-pressure				$ 309.02
33	5303311317		Bracket-burner Mtg, (2)		Appelez-nous	-
35	5303307978		Bushing-insulation		Appelez-nous	-
*62322	08016432		Screw, Truss Head, 8-18 X 3/8, (4)		Appelez-nous	-
*62323	5303311306		Screw, 8-18 X 3/8		Appelez-nous	-
*62324	5303311318		End Connector		Appelez-nous	-
1A	3017002		Manifold Pipe		Appelez-nous	-
1B	5303323957		Bracket (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
