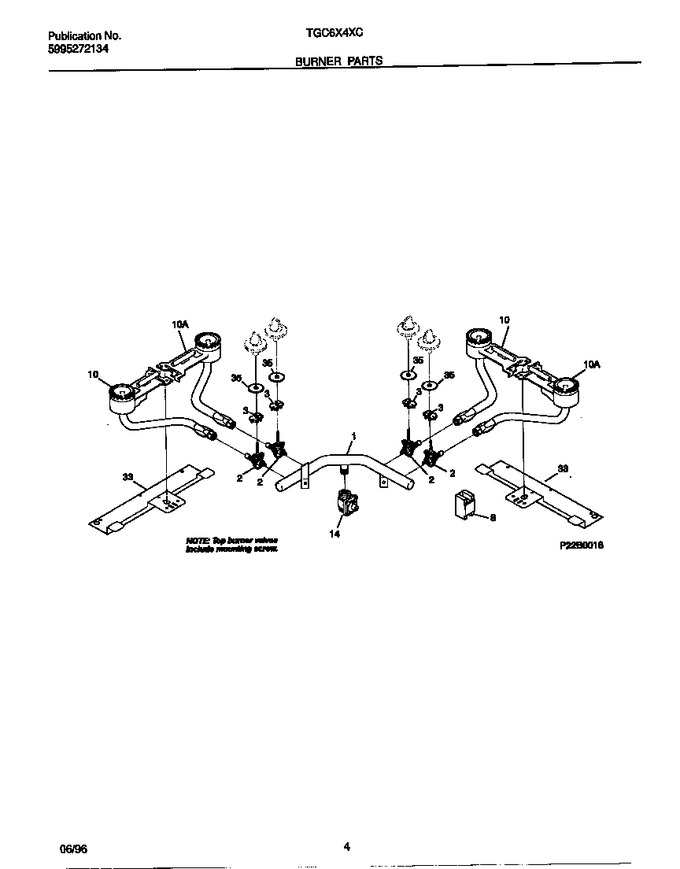

03 - Burner Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017002 | Manifold Pipe |
|
- | |||||
| 2 | 316009600 | Valve-top Burner, (4), With Mtg Screws |
|
- | |||||
| 3 | 316032001 | Switch-igniter, (4) |
|
$ 69.35 | |||||
| 8 | 5303209931 | Spark Module |
|
- | |||||
| 10 | 3016995 | Burner-top, Rf & Lr |
|
- | |||||
| 10 | 3016994 | Burner-top, Lf & Rr |
|
- | |||||
| 11 | 5303311314 | Ignitor-top Burner, Base, Rear, (2) |
|
- | |||||
| 12 | 3016993 | Retainer-igniter |
|
- | |||||
| 14 | 5308007974 | Regulator-pressure |
|
$ 309.02 | |||||
| 33 | 5303311317 | Bracket-burner Mtg, (2) |
|
- | |||||
| 35 | 5303307978 | Bushing-insulation |
|
- | |||||
| *13640 | 5303311306 | Screw, 8-18 X 3/8 |
|
- | |||||
| *13641 | 5303311318 | End Connector |
|
- |
