SELECT A DIAGRAM

01 - Cover

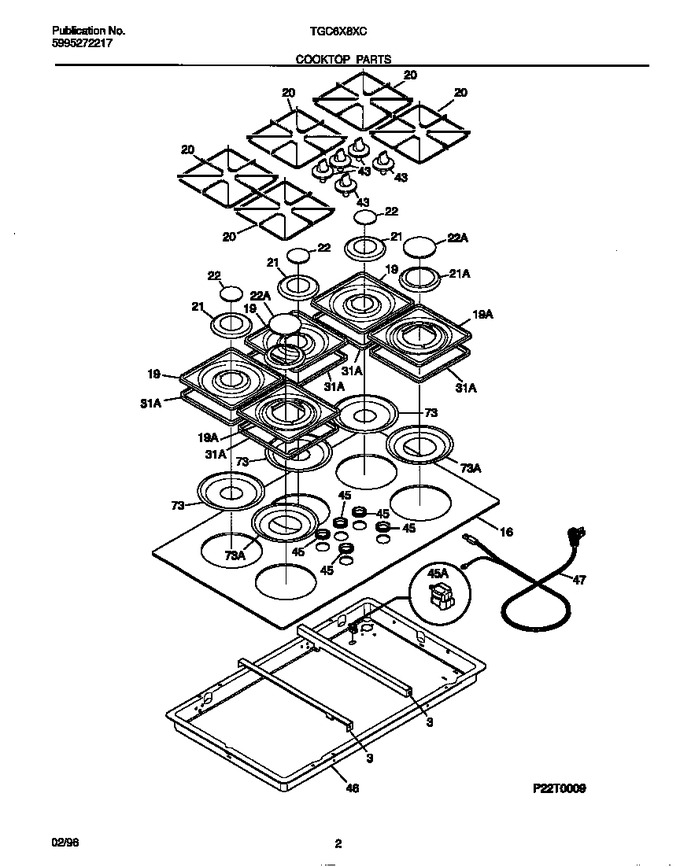

02 - Cooktop Parts


03 - Burner Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318043300		Support, Main Top, (2)		Appelez-nous	-
16	5303307938		Tape, Foam (not Illustrated)		Appelez-nous	-
16	318079605		Main Top, Glass, Almond		Appelez-nous	-
19	5303307929		Pan-burner, Almond		Appelez-nous	-
19	5303311264		Pan-burner, Almond, Large, (2)		Appelez-nous	-
20	318025001		Grate, Moon Rock		Appelez-nous	-
21	318050501		Trim Ring, Almond		Appelez-nous	-
21	318050601		Trim Ring-large, Almond		Appelez-nous	-
22	316011004		Cap-burner, Almond, Small, (3)		Appelez-nous	-
22	318076502		Cap-burner, Almond, Large, (2)		Appelez-nous	-
31	5303307931		Gasket, Pan		Appelez-nous	-
43	318016403		Knob-control, Almond		Appelez-nous	-
45	5304513507		Bushing - Snap   (Replaces: 3201437)				$ 9.10
45	5303307933		Bushing, Top Burner Knob		Appelez-nous	-
46	318077000		Burner Box		Appelez-nous	-
47	5303303991		Cord-electric Power				$ 96.50
73	318057101		Shield-heat, (2), Large		Appelez-nous	-
73	318057100		Shield-heat, (3), Small		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
