SELECT A DIAGRAM

01 - Cover


02 - Cooktop Parts

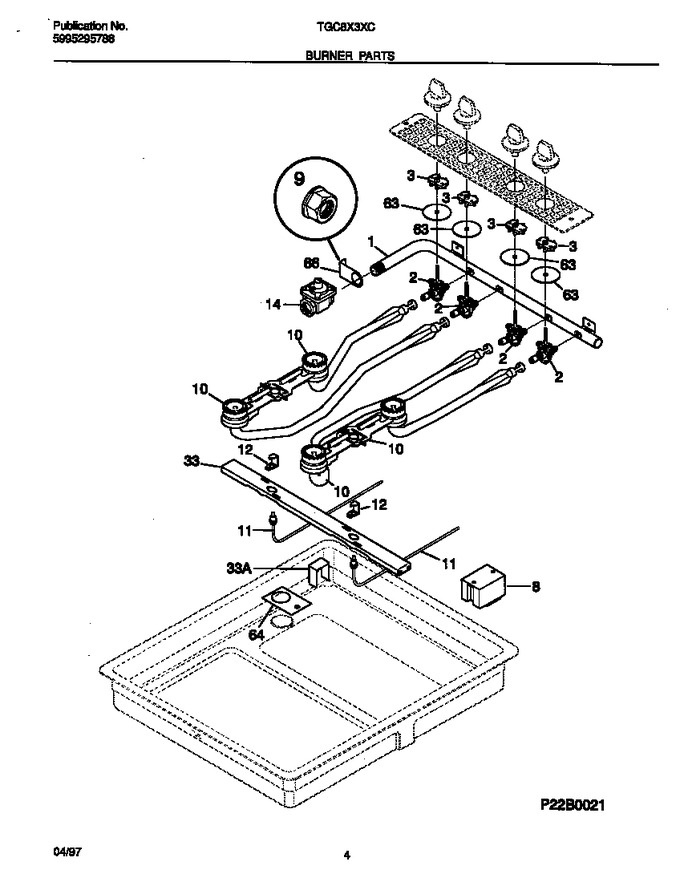

03 - Burner Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	316009600		Valve-top Burner, (4), With Mtg Screws		Appelez-nous	-
3	316032001		Switch-igniter, (4)				$ 69.35
8	5303912606		Spark Module				$ 134.67
9	5303311307		Nut,angle ,4-20		Appelez-nous	-
12	3016993		Retainer-ignitor		Appelez-nous	-
14	5308007974		Regulator-pressure				$ 309.02
33	5303294763		Bracket,support		Appelez-nous	-
63	5303307978		Bushing-insulation		Appelez-nous	-
64	5303294750		Retainer/bracket		Appelez-nous	-
66	5303294765		Angle, Manifold Pipe, Mtg		Appelez-nous	-
*66762	08016432		Screw, Truss Head, 8-18 X 3/8, (4)		Appelez-nous	-
10A	5303317771		Burner-top, Front		Appelez-nous	-
10B	5303317770		Burner-top, Rear		Appelez-nous	-
11A	318148500		Ignitor-top Burner, Base, 7.25``		Appelez-nous	-
11B	318148501		Ignitor-top Burner, Base, 16.25``		Appelez-nous	-
1A	5303294450		Manifold Pipe		Appelez-nous	-
1B	5303207818		Fastener, Tandem (not Illustrated)		Appelez-nous	-
33A	5303294764		Channel-burner Support		Appelez-nous	-
33B	5303311306		Screw, 8-18 X 3/8 (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
