SELECT A DIAGRAM

01 - Cover

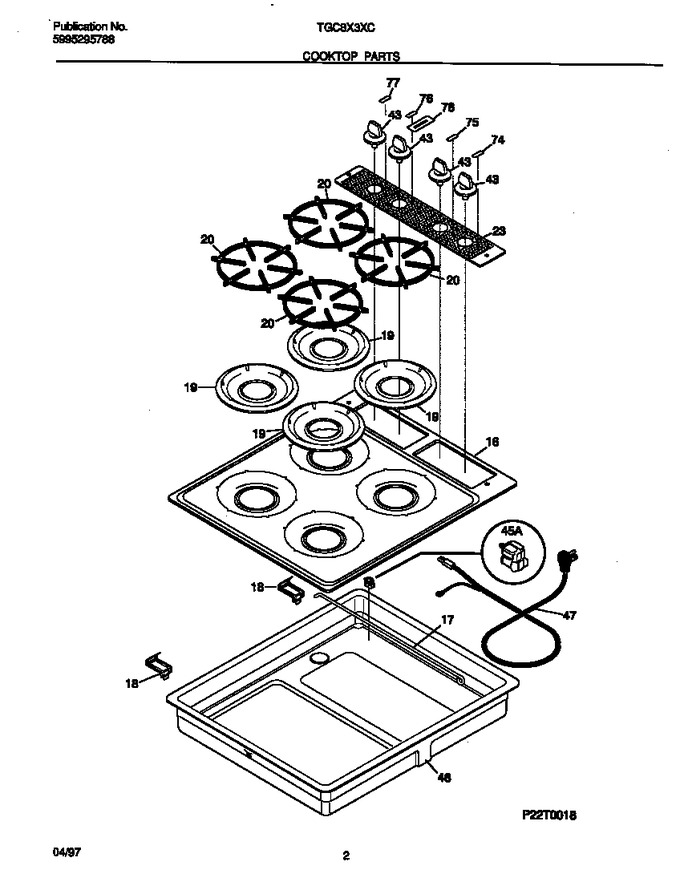

02 - Cooktop Parts


03 - Burner Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318159105		Main Top, White		Appelez-nous	-
16	5303305547		Channel-top Stiffener (not Illustrated)		Appelez-nous	-
17	3016817		Rod,maintop Support		Appelez-nous	-
18	318074310		Hinge-main Top, (2)				$ 51.98
19	318067300		Pan,burner ,(4)		Appelez-nous	-
20	316040807		Grate, (4)		Appelez-nous	-
43	318016204		Knob-control, Black, (4)		Appelez-nous	-
45	5304513507		Bushing - Snap   (Replaces: 3201437)				$ 9.10
46	318077302		Burner Box   (Replaces: 318077301)		Appelez-nous	-
47	5303311311		Cord,electric Power		Appelez-nous	-
74	318101500		Plate-control, Lf		Appelez-nous	-
75	318101501		Plate-control, Rf		Appelez-nous	-
76	318101502		Plate-control, Lr		Appelez-nous	-
77	318101503		Plate-control, Rr		Appelez-nous	-
78	318075800		Nameplate		Appelez-nous	-
*66760	3051038		Nut		Appelez-nous	-
*66761	5303300265		Screw, 8-18 X 1/2				$ 15.17
23A	318075401		Panel-control Assy		Appelez-nous	-
23B	5303311306		Screw, 8-18 X 3/8 (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
