SELECT A DIAGRAM

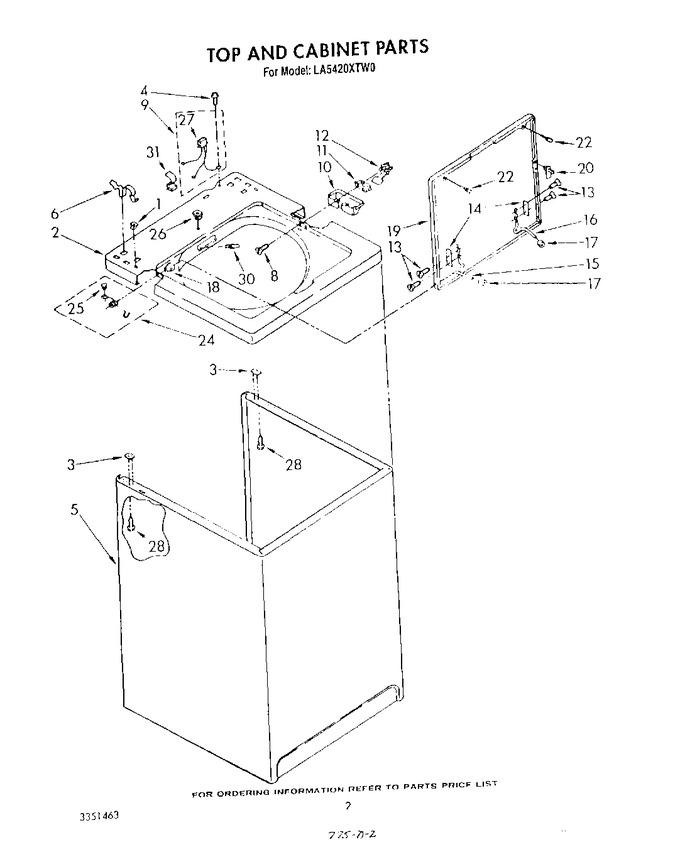

02 - Top And Cabinet , Literature And Optional


03 - Controls And Rear Panel


04 - Agitator, Basket And Tub


05 - Miscellaneous


06 - Brake, Clutch, Gearcase, Motor And Pump


07 - Machine Base


08 - Wiring Harness


09 - Brake And Drive Tube


10 - Gearcase


11 - Water System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	358473		Nut, Push-in (2)				$ 5.84
2	388476		Top (platinum)		Appelez-nous	-
2	388477		Top (golden Harvest)		Appelez-nous	-
2	388473		Top (white)		Appelez-nous	-
2	388474		Top (almond)		Appelez-nous	-
2	388475		Top (toast)		Appelez-nous	-
3	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 6.92
4	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.07
5	386618		Cabinet (platinum)		Appelez-nous	-
5	63132		Cabinet (golden Harvest)				$ 204.60
5	63129		Cabinet (almond)		Appelez-nous	-
5	63128		Cabinet (white)		Appelez-nous	-
5	386617		Cabinet (toast)		Appelez-nous	-
6	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 7.02
8	354764		Screw & Washer, Lid Switch (2)		Appelez-nous	-
9	63833		Harness, Lid Switch		Appelez-nous	-
10	WP359231		Shield, Lid Switch   (Replaces: 359231)				$ 7.58
11	W10820036		Switch, Lid (alt.)   (Replaces: 359230)			Immediately	$ 27.45
11	W10820036		Switch, Lid (alt.)   (Replaces: 388322)			Immediately	$ 27.45
11	W10820036		Switch, Lid (alt.)   (Replaces: 3347287)			Immediately	$ 27.45
11	W10820036		Switch, Lid   (Replaces: 661517)			Immediately	$ 27.45
12	357347		Actuator, Lid Switch		Appelez-nous	-
13	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: 3351355)			Immediately	$ 6.47
14	WP21097		Pad, Lid Hinge (2)   (Replaces: 21097)				$ 7.02
15	WP54584		Hinge, Lid (l.h.)   (Replaces: 54584)				$ 30.09
16	WP54583		Hinge, Lid (r.h.)   (Replaces: 54583)				$ 26.60
17	19119		Bumper, Lid Hinge				$ 5.75
18	WP21258		Bearing, Lid Hinge (2)   (Replaces: 21258)			Immediately	$ 6.87
19	388455		Lid (white)		Appelez-nous	-
19	388459		Lid (golden Harvest)		Appelez-nous	-
19	388457		Lid (platinum)		Appelez-nous	-
19	388458		Lid (toast)		Appelez-nous	-
19	388456		Lid (almond)		Appelez-nous	-
20	WP358684		Strike, Lid Switch   (Replaces: 358684)			Immediately	$ 6.90
22	WP9724509		Bumper, Lid (2)   (Replaces: 93770)			Immediately	$ 7.14
24	3349948		Spring & Button, Lid		Appelez-nous	-
25	54690		Plug, Button		Appelez-nous	-
26	358472		Stop, Push-in Top		Appelez-nous	-
27	62888		Plug, Terminal (3-way)				$ 37.28
28	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 384435)			Immediately	$ 7.07
30	354239		Rivet, Serial Nameplate		Appelez-nous	-
31	WP90016		Clip, Harness   (Replaces: 90016)				$ 10.19
	LIT3347022		Sheet, Installation Instructions		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	LIT3351870		Guide, Use And Care		Appelez-nous	-
	LIT3351410		Guide, Laundry		Appelez-nous	-
	285208		Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin)				$ 41.86
	WP285195		Sealer, Gasket (20 Fl. Oz.) (6 Ml)   (Replaces: 285195)				$ 93.95
	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
	350572		Oil, Gearcase (16 Oz.)			Immediately	$ 82.45
	261891		Golden Harvest (uncut)		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
	285368		Platinum (uncut)		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	261890		Golden Harvest		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	285365		Toast		Appelez-nous	-
	350941		Leveler (thinner)		Appelez-nous	-
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
	LIT3351463		List, Repair Parts		Appelez-nous	-
	LIT3347772		Label, Wiring Diagram		Appelez-nous	-
	LIT3351419		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
