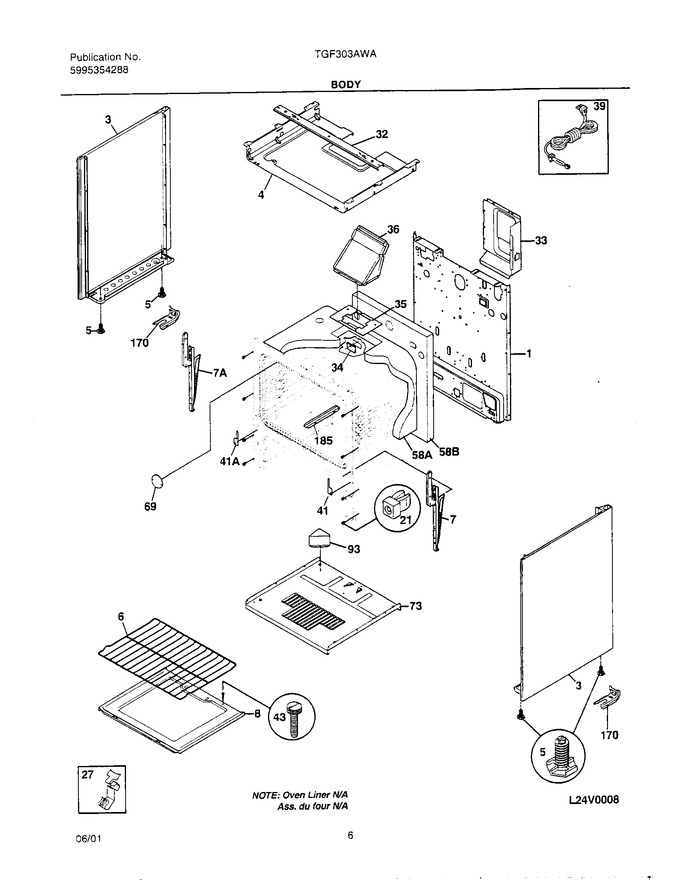

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029416		Panel,main Back		Appelez-nous	-
3	316230103		Panel-bodyside,white ,lh		Appelez-nous	-
3	316230102		Panel-bodyside,white ,rh		Appelez-nous	-
4	316067206		Burner Box		Appelez-nous	-
5	316129200		Screw,leveling ,plastic ,with Stop				$ 10.92
6	316067902		Rack,oven			Immediately	$ 103.10
7	316205002		Hinge-oven Door,rh		Appelez-nous	-
7	316205003		Hinge-oven Door,lh		Appelez-nous	-
8	5303300701		Panel-oven Bottom		Appelez-nous	-
21	3014099		Spacer,bodyside				$ 3.62
27	5303284616		Clip,thermo Bulb Mtg				$ 9.86
32	316107501		Channel-burner Supt		Appelez-nous	-
33	316055600		Shield-spark Module,galv Steel		Appelez-nous	-
34	3018607		Cover Plate				$ 10.50
35	316542102		Gasket,flue   (Replaces: 316116600)				$ 12.13
36	316103901		Flue,black		Appelez-nous	-
39	5304534377		Cord-electric Power   (Replaces: 3202006)				$ 26.85
41	316233400		Cover,hinge Cutout ,rh				$ 67.99
41	316233500		Cover-hinge,cutout ,lh				$ 16.96
43	316282700		Screw,8-18 X 1.438 ,oven Bottom   (Replaces: 3131732)				$ 9.93
58	3203541		Insulation, Oven Back		Appelez-nous	-
58	3017142		Insulation, Oven Wrapper				$ 193.50
69	3051218		Plate,oven Light		Appelez-nous	-
73	316109902		Base,low Broil				$ 131.25
93	316110000		Shield,ignitor ,metal		Appelez-nous	-
170	316116000		Screw`concrete Tpg `1.75 Inch ,anti-tip Brkt				$ 12.89
170	316112005		Kit-anti-tip Bracket (complete W/template & Screw)   (Replaces: 5303935180)			Immediately	$ 18.91
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
170	316112500		Template,anti-tip				$ 3.55
185	316112900		Shield,thermo Bulb		Appelez-nous	-
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	316064600		Support,oven Bottom				$ 18.95
NI	5303289684		Fastener,tanden Wire ,(2)		Appelez-nous	-
NI	3131192		Cover-rear Wall		Appelez-nous	-
NI	316246400		Plug,button ,oven Probe		Appelez-nous	-
NI	316249200		Plate,weight		Appelez-nous	-
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
