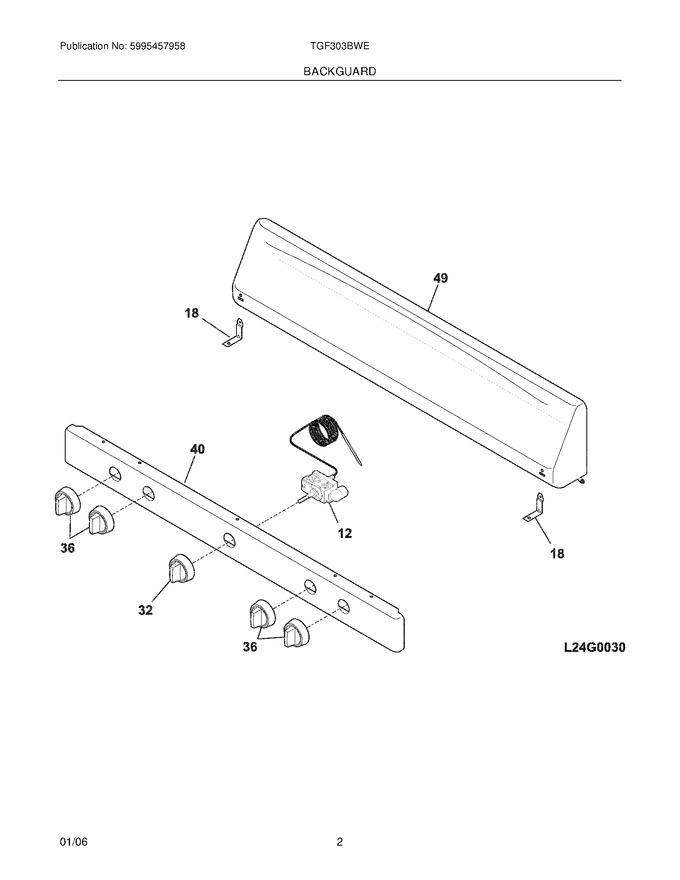

03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	316263900		Bracket,backguard		Appelez-nous	-
32	316102300		Knob-thermostat,black				$ 65.22
36	316009008		Knob,top Valve ,black ,(4)				$ 54.86
40	316458003		Panel,manifold ,black		Appelez-nous	-
49	316263802		Panel,backguard ,white		Appelez-nous	-
F12	316032411		Thermostat   (Replaces: 316032404)			Immediately	$ 165.14
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316097602		Insulator		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
