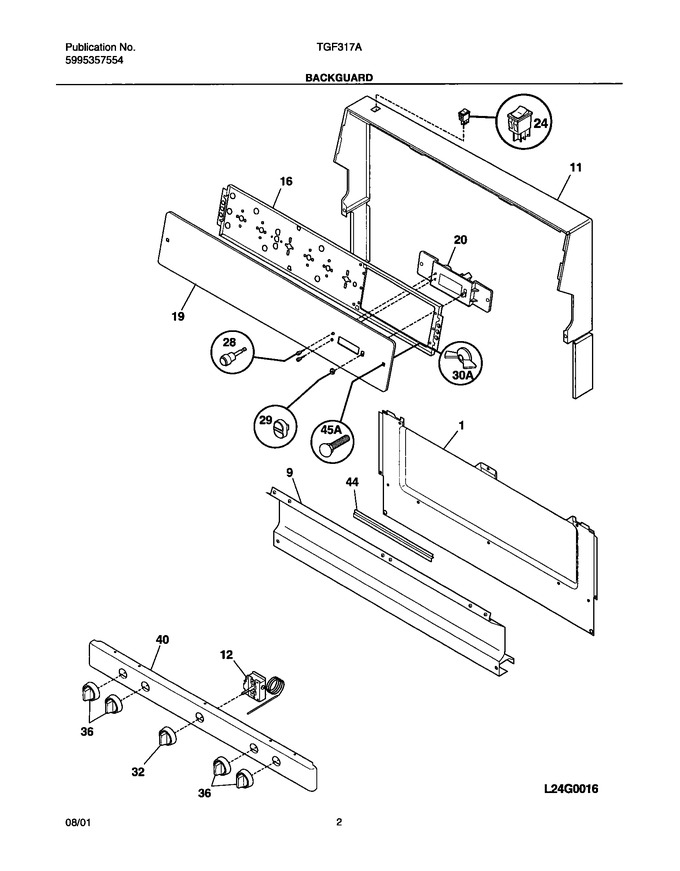

03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303289640		Shield-backguard,rear Wall				$ 144.64
9	316133507		Trim-splasher,white ,lower		Appelez-nous	-
11	316083715		Trim,wrapper ,black		Appelez-nous	-
16	316042602		Plate, Instrument Mtg		Appelez-nous	-
19	316034168		Panel,backguard ,black		Appelez-nous	-
28	5303272306		Push Button,clock Set ,black ,(2)		Appelez-nous	-
29	5303272305		Button,clock/timer ,black				$ 38.80
32	316102300		Knob-thermostat,black				$ 65.22
36	316009008		Knob,top Valve ,black ,(4)				$ 54.86
40	316201804		Panel,manifold ,black		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
30A	316064300		Nut,nylon		Appelez-nous	-
45A	316056902		Bolt-fastener, Nylon		Appelez-nous	-
F12	316032411		Thermostat   (Replaces: 316032404)			Immediately	$ 165.14
F20	316113200		Clock-timer		Appelez-nous	-
F24	5304527841		Switch,rocker ,black ,oven Light   (Replaces: 316246001)			Immediately	$ 11.38
NI	5303272555		Clip-backguard		Appelez-nous	-
NI	316097602		Insulator		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
