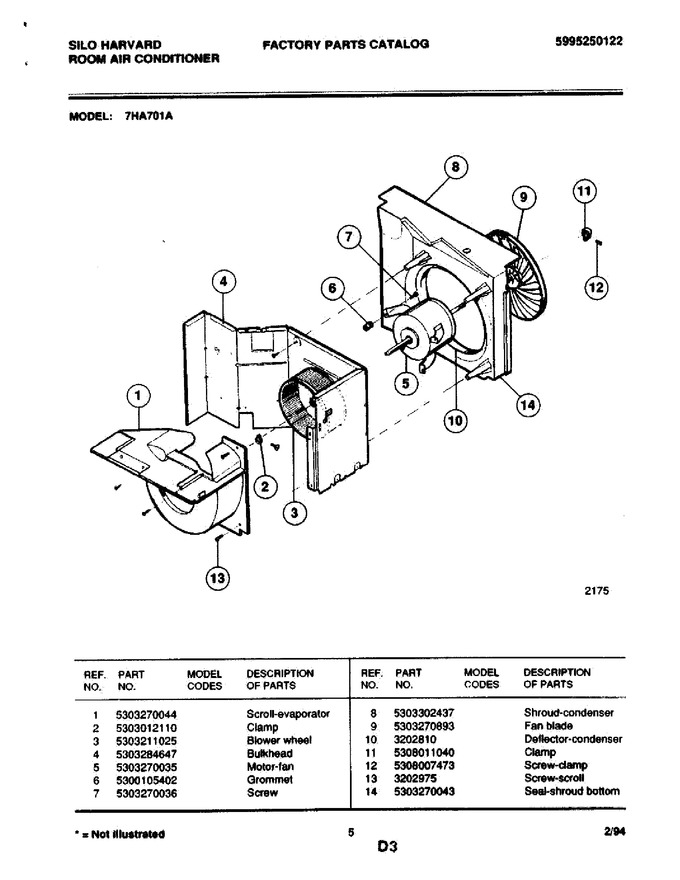

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Wrapper
05 - Control Parts
06 - Motor/fan
07 - Compressor
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270044 | Scroll-evaporator |
|
- | |||||
| 2 | 5303012110 | Clamp |
|
$ 8.14 | |||||
| 3 | 5303211025 | Blower Wheel |
|
- | |||||
| 4 | 5303284647 | Bulkhead |
|
- | |||||
| 5 | 5303270035 | Motor Fan |
|
- | |||||
| 6 | 5300105402 | Grommet |
|
- | |||||
| 7 | 5303270036 | Screw |
|
- | |||||
| 8 | 5303302437 | Shroud Condenser |
|
- | |||||
| 9 | 5303270893 | Fan Blade |
|
$ 132.46 | |||||
| 10 | 3202810 | Deflector-condenser |
|
- | |||||
| 11 | 5308011040 | Clamp |
|
- | |||||
| 12 | 5308007473 | Screw-clamp |
|
- | |||||
| 13 | 3202975 | Screw Scroll |
|
- | |||||
| 14 | 5303270043 | Seal-shroud Bottom |
|
- |
