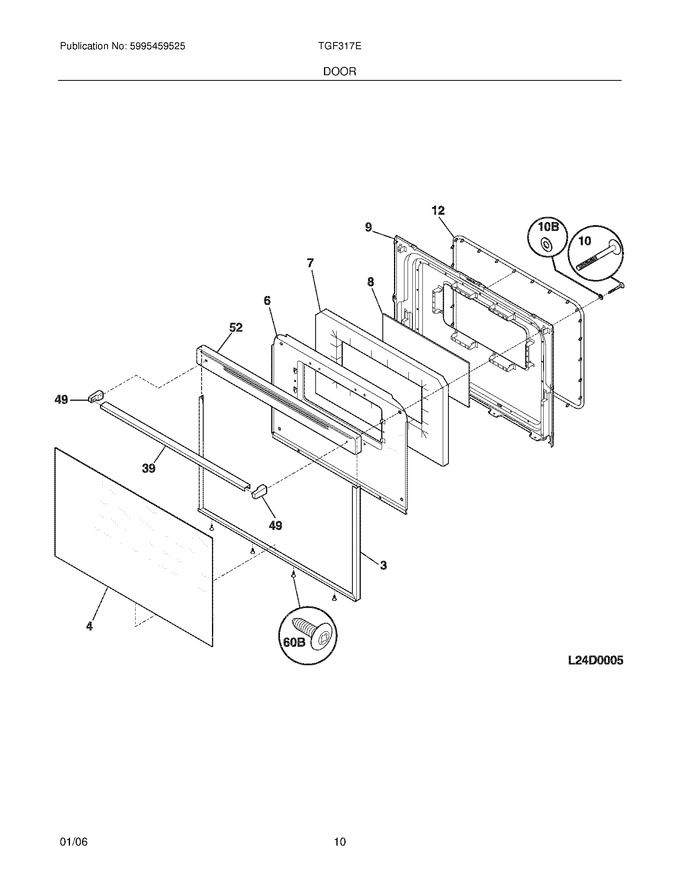

11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935192		Trim Kit-door,3 Sided ,white ,w/tape And Foil				$ 77.76
4	5303935204		Glass,door Kit ,white ,outer ,w/ Foil Tape				$ 454.31
6	316222703		Shield,oven Door ,wool   (Replaces: 316222709)				$ 78.67
7	316236801		Insulation,oven Door				$ 58.59
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316230616		Liner,oven Door				$ 90.72
10	316001009		Screw,waf Hd Sq `10-24 X 1.88 ,(2) ,handle Mtg				$ 15.17
12	316239700		Seal,oven Door			Immediately	$ 152.43
39	316545301		Handle,oven Door ,white   (Replaces: 316020202)			Immediately	$ 130.85
49	316137000		End Cap,handle ,white ,(2)				$ 64.50
52	316491200		Cap,door Trim ,white   (Replaces: 316201003)			Immediately	$ 119.83
10B	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316433600		Label,anti-tip		Appelez-nous	-
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
