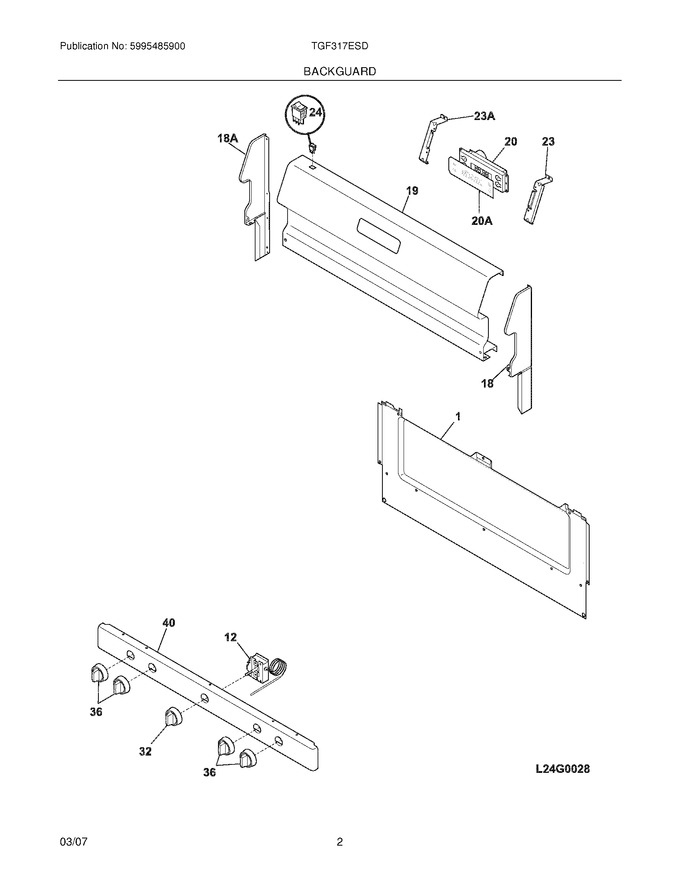

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303289640		Shield-backguard,rear Wall				$ 144.64
18	316263404		End Cap,white ,rh		Appelez-nous	-
19	316263355		Panel,backguard ,white		Appelez-nous	-
23	316263500		Bracket,clock Mtg ,rh		Appelez-nous	-
32	316102303		Knob,thermostat ,white				$ 61.43
36	316009045		Knob,top Valve ,white ,(4)				$ 42.53
40	316458001		Panel,manifold ,white		Appelez-nous	-
18A	316263405		End Cap,white ,lh		Appelez-nous	-
20A	316115305		Overlay-clock,white		Appelez-nous	-
23A	316263501		Bracket,clock Mtg ,lh		Appelez-nous	-
F12	316032411		Thermostat   (Replaces: 316032404)			Immediately	$ 165.14
F20	316440000		Clock/timer				$ 187.53
F24	5304527842		Switch,rocker ,white ,oven Light   (Replaces: 316448701)			Immediately	$ 16.13
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316097602		Insulator		Appelez-nous	-
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
