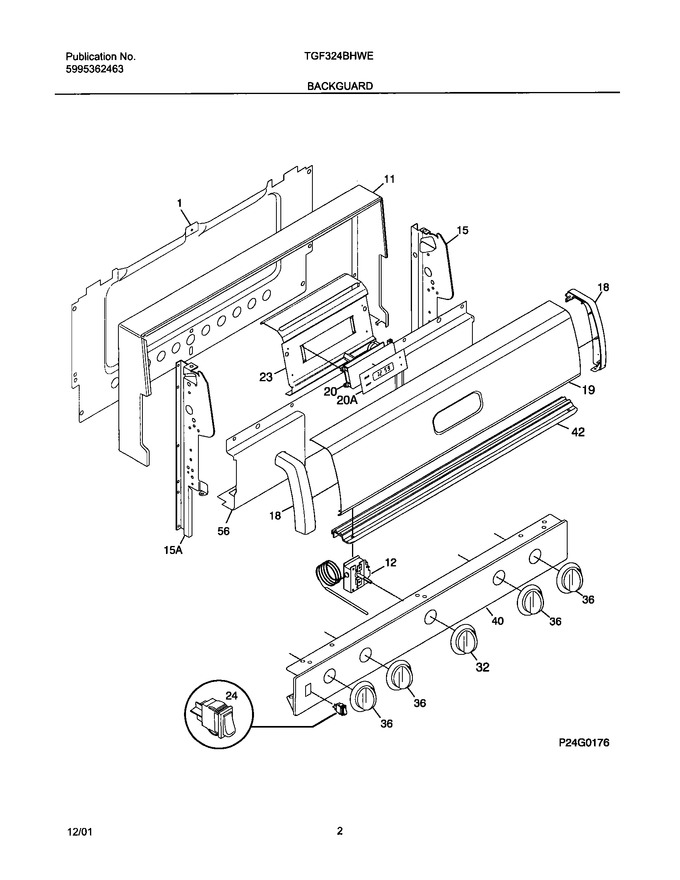

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028700		Shield-backguard,galv ,rear Wall		Appelez-nous	-
11	316061856		Trim-wrapper,black ,textured		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
18	5303935174		End Cap,black ,rh & Lh		Appelez-nous	-
19	316115007		Panel,backguard ,black		Appelez-nous	-
23	316131500		Bracket-timer		Appelez-nous	-
32	316109506		Knob,thermostat ,black				$ 67.20
36	316109507		Knob,top Valve ,black ,(4)				$ 82.43
40	316086865		Panel-manifold,black		Appelez-nous	-
42	316055202		Trim,extrusion ,black		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
15A	316023109		Support,backguard ,lh		Appelez-nous	-
20A	316115307		Overlay-clock,black		Appelez-nous	-
F12	316032411		Thermostat   (Replaces: 316032404)			Immediately	$ 165.14
F20	316116200		Clock/timer,tod		Appelez-nous	-
F24	5304527841		Switch,oven Light ,black ,rocker   (Replaces: 316118100)			Immediately	$ 11.38
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316097602		Insulator		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
