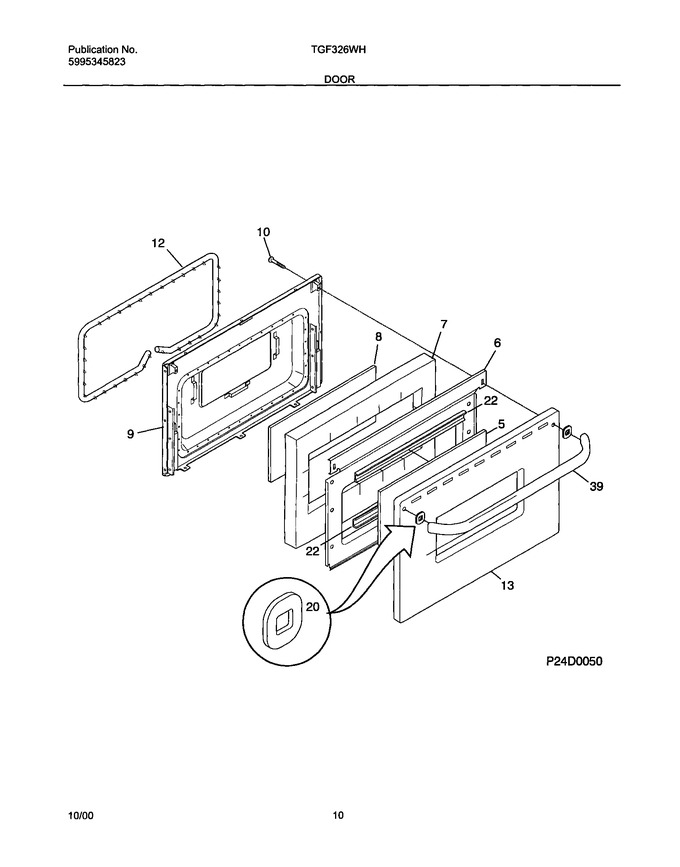

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	316050300		Glass,oven Door ,white ,outer		Appelez-nous	-
6	316088403		Shield-wool		Appelez-nous	-
7	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316066610		Liner-oven Door		Appelez-nous	-
10	5303280308		Screw-handle Mtg,wafer Hd Sq Dr ,10-24t X 2.00				$ 16.96
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
13	3017081		Panel, Oven Door, White		Appelez-nous	-
20	316133601		Spacer-handle,white ,(2)		Appelez-nous	-
22	5303272476		Retainer-glass,angle ,(2)		Appelez-nous	-
39	5304530039		Handle-door, White, Oven   (Replaces: 316091115)			Immediately	$ 167.43
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312 ,(2)				$ 6.62
NI	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	316021109		Screw,8-18 X 0.500 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.500 ,burner Box			Immediately	$ 13.46
