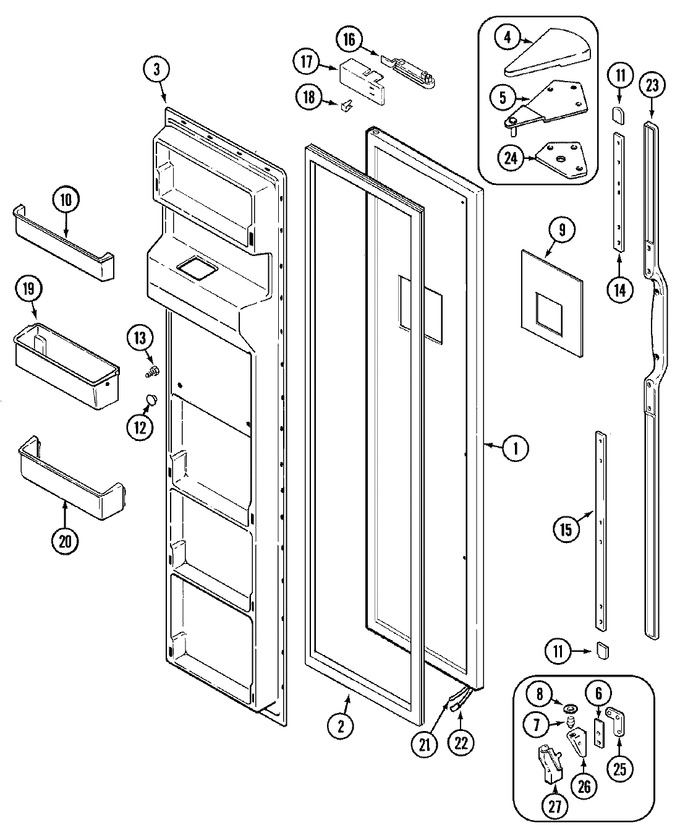

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 495034-900 | Plug Button, Door | 10 |
|
- | ||||
| 1 | 72341-104-AM | Panel, Frz. Door (alm) | 10 |
|
- | ||||
| 2 | 70024-1 | Gasket | 10 |
|
- | ||||
| 3 | 61001406 | Insulation, Liner Support | 10 |
|
- | ||||
| 3 | 65275-5 | Screw | 10 |
|
- | ||||
| 3 | 61001405 | Insulation, Liner Support | 10 |
|
- | ||||
| 3 | 69252-1 | Liner, Frz. Door | 10 |
|
- | ||||
| 4 | 70121-3 | Cover, Upper Hinge (alm) | 10 |
|
- | ||||
| 5 | WP3-24838-048 | Screw (Replaces: 65275-52) | 10 |
|
$ 7.00 | ||||
| 5 | 53709-22 | Hinge, Upper | 10 |
|
- | ||||
| 6 | 69510-1 | Shim, Lower Hinge | 10 |
|
- | ||||
| 7 | 70060-1 | Pin, Hinge | 10 |
|
- | ||||
| 8 | 67483-3 | Washer, Door Spacer | 10 |
|
Immediately | $ 45.86 | |||
| 9 | 414004-35 | Screw | 10 |
|
- | ||||
| 9 | 70318-11 | Escutcheon (alm) | 10 |
|
- | ||||
| 10 | 69870-22 | Front, Pick Off | 10 |
|
- | ||||
| 11 | 69590-1 | End Cap, Handle | 10 |
|
- | ||||
| 12 | 65660-2 | Stud, Pick-off Shelf | 10 |
|
- | ||||
| 13 | WP90767 | Screw (Replaces: 400014-1) | 10 |
|
Immediately | $ 7.04 | |||
| 13 | 420028-1 | Washer | 10 |
|
- | ||||
| 14 | 69586-3 | Trim, Handle Ext. (upper) | 10 |
|
- | ||||
| 15 | W10856122 | Screw (Replaces: 65275-80) | 10 |
|
$ 6.98 | ||||
| 15 | 69586-4 | Trim, Handle Ext. (lower) | 10 |
|
- | ||||
| 16 | 414004-1 | Screw | 10 |
|
- | ||||
| 16 | 69258-1 | Closer, Door | 10 |
|
- | ||||
| 17 | 70049-1 | Insulation Door | 10 |
|
- | ||||
| 17 | 52613-1 | Insulation, Closer | 10 |
|
- | ||||
| 18 | 69261-1 | Bracket, Closer | 10 |
|
- | ||||
| 19 | 69873-17 | Shelf, Pick Off | 10 |
|
- | ||||
| 20 | 69870-21 | Front, Pick Off | 10 |
|
- | ||||
| 21 | WPW10426709 | Tubing, Coil To Fountain (Replaces: 67187-29) | 10 |
|
$ 126.83 | ||||
| 22 | 69804-1 | Wire Harness, Door | 10 |
|
- | ||||
| 23 | 12000043 | Kit, Handle Assy (almond) | 10 |
|
- | ||||
| 24 | 65031-1 | Shim, Upper Hinge | 10 |
|
- | ||||
| 25 | 65275-59 | Screw | 10 |
|
- | ||||
| 25 | 67874-1 | Tapping Plate, Lower Hinge | 10 |
|
- | ||||
| 26 | 65275-51 | Screw, Lower Hinge | 10 |
|
- | ||||
| 26 | 69516-3 | Hinge, Lower (zinc) | 10 |
|
- | ||||
| 27 | 68978-3 | Cover, Lower Hinge (alm) | 10 |
|
- | ||||
| 27 | 65275-56 | Screw | 10 |
|
- |
