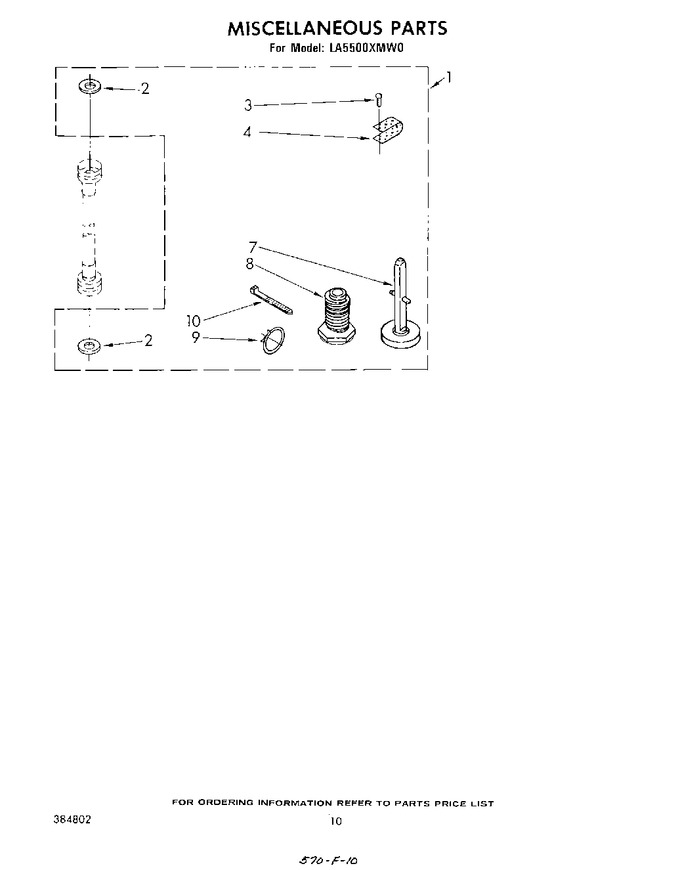

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	387200		Miscellaneous Parts Bag		Appelez-nous	-
2	WP16123		Washer, Inlet Hose (4) (1-1/16 X 5/8) (4)   (Replaces: 16123)				$ 6.93
3	132848		Screw, Ground (10-24 X 1)		Appelez-nous	-
4	22965		Strap, Ground		Appelez-nous	-
7	WP358594		Foot, Rear (2)   (Replaces: 358594)				$ 12.24
8	WP367594		Foot, Front (2)   (Replaces: 367594)			Immediately	$ 18.46
9	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
10	WPW10339879		Tie, Cable   (Replaces: 386566)				$ 7.11
76	LIT677967		Lit677813 (belt Drive) (dishwasher)		Appelez-nous	-
76	LIT677818		Lit677813 (belt Drive) (dryer)		Appelez-nous	-
76	677821		Lit677813 (belt Drive) (compactor)   (Replaces: LIT677821)				$ 31.51
	350941		Leveler (thinner)		Appelez-nous	-
	LIT383172		Guide, Use & Care		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	LIT383971		Instructions, Installation		Appelez-nous	-
	LIT385238		Guide, Laundry		Appelez-nous	-
	LIT383369		Label, Energy Guide		Appelez-nous	-
	LIT384802		List, Repair Parts		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
