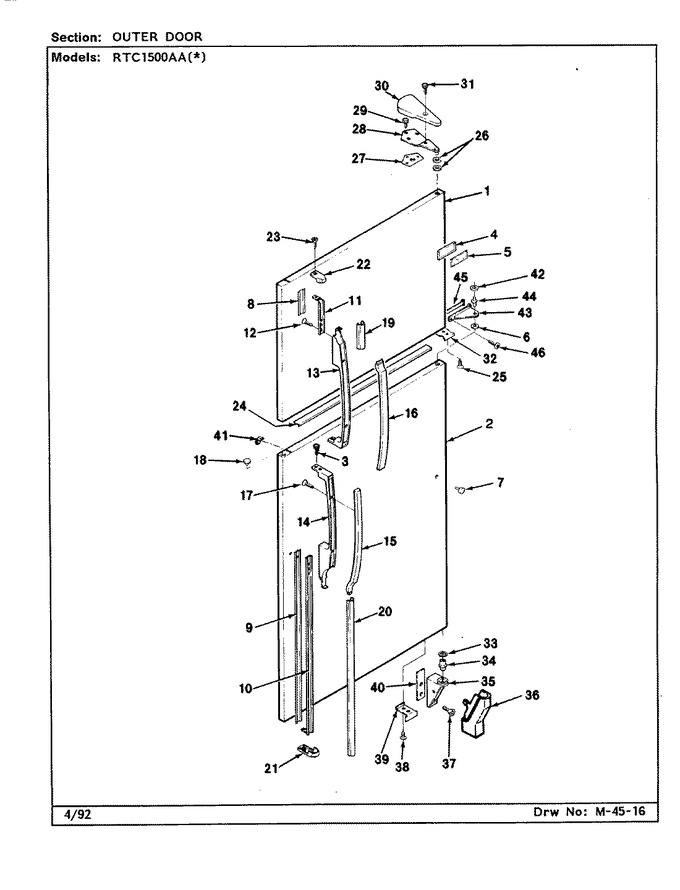

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Freezer Compartment
02 - Fresh Food Compartment
03 - Inner Door
04 - Optional Ice Maker Kit
05 - Outer Door
06 - Shelves & Accessories
07 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72042-1-AM | Panel, Frz. Door (alm) |
|
- | |||||
| 2 | 72042-6-AM | Panel, F.f. Door (alm) |
|
- | |||||
| 3 | 67386-1 | Clip, Handle |
|
- | |||||
| 3 | 65275-22 | Screw |
|
- | |||||
| 4 | 67673-1 | Bezel, Nameplate |
|
- | |||||
| 5 | 67194-1 | Insert, Nameplate |
|
- | |||||
| 6 | 54233-2 | Washer |
|
- | |||||
| 7 | 67678-3 | Plug Button, Handle Top (alm) |
|
- | |||||
| 8 | 67746-1 | Shim |
|
- | |||||
| 9 | 67746-4 | Shim |
|
- | |||||
| 10 | 67157-4 | Bracket, Handle |
|
- | |||||
| 11 | 67157-1 | Bracket, Handle |
|
- | |||||
| 12 | 65275-31 | Screw, Bracket To Handle |
|
- | |||||
| 13 | 67778-1 | Handle, Door |
|
- | |||||
| 14 | 67697-4 | Shim |
|
- | |||||
| 14 | 67778-1 | Handle, Door |
|
- | |||||
| 14 | 67697-3 | Shim Handle |
|
- | |||||
| 14 | 67697-2 | Shim Handle |
|
- | |||||
| 14 | 66799-3 | Clip, Handle Screw |
|
- | |||||
| 14 | 65275-29 | Screw,handle Bottom (hex Head) |
|
- | |||||
| 15 | 67153-1 | Insert, Handle (freezer) |
|
- | |||||
| 16 | 67153-1 | Insert, Handle (freezer) |
|
- | |||||
| 17 | 65275-44 | Screw |
|
- | |||||
| 18 | 55782-6 | Plug Button (almond) |
|
- | |||||
| 18 | 67634-3 | Plug Button, Hinge Cup (alm) |
|
- | |||||
| 19 | 67805-1 | Extension Trim |
|
- | |||||
| 20 | 67805-4 | Trim, Extension |
|
- | |||||
| 21 | 68818-1 | Endcap, Handle (f.f. Door) |
|
- | |||||
| 22 | 67382-1 | Endcap, Handle (frz.) |
|
- | |||||
| 23 | 65275-22 | Screw |
|
- | |||||
| 23 | 65275-26 | Screw (no.12 X 5/8``) |
|
- | |||||
| 24 | 66651-5 | Trim, Door |
|
- | |||||
| 25 | 65275-48 | Screw |
|
- | |||||
| 26 | 54233-1 | Washer |
|
$ 7.71 | |||||
| 27 | 65031-1 | Shim, Upper Hinge |
|
- | |||||
| 28 | 67456-2 | Hinge, Top | - |
|
- | ||||
| 28 | 56144-9 | Plug Button, Hinge Screw (alm) | - |
|
- | ||||
| 28 | 56144-13 | Plug Button, Upper Hinge (wht) |
|
- | |||||
| 29 | WP3-24838-048 | Screw (Replaces: 9986-87) | - |
|
$ 7.00 | ||||
| 30 | 67229-3 | Cover, Upper Hinge (alm.) | - |
|
- | ||||
| 30 | 67229-4 | Cover, Upper Hinge(wht.) | - |
|
- | ||||
| 31 | 403060-1 | Screw, Hinge Cover | - |
|
- | ||||
| 32 | 67662-1 | Stop, Door | - |
|
- | ||||
| 33 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) | - |
|
Immediately | $ 45.86 | |||
| 34 | 68977-1 | Pin, Hinge | - |
|
- | ||||
| 35 | 68975-2 | Hinge, Lower | - |
|
- | ||||
| 36 | 68978-1 | Cover, Lower Hinge (blk) | - |
|
- | ||||
| 37 | 65275-51 | Screw, Lower Hinge | - |
|
- | ||||
| 38 | 65275-48 | Screw | - |
|
- | ||||
| 39 | 69022-1 | Stop, Door | - |
|
- | ||||
| 40 | 65275-59 | Screw | - |
|
- | ||||
| 40 | 67874-1 | Tapping Plate, Lower Hinge | - |
|
- | ||||
| 40 | 69031-1 | Shim | - |
|
- | ||||
| 41 | 67386-1 | Clip, Handle | - |
|
- | ||||
| 42 | 67483-1 | Washer, Center Hinge (upper) | - |
|
- | ||||
| 43 | 67859-1 | Hinge, Center | - |
|
- | ||||
| 44 | 67322-1 | Pin, Center Hinge | - |
|
- | ||||
| 45 | 67857-1 | Shim, Center Hinge | - |
|
- | ||||
| 45 | 67475-1 | Tapping Plate | - |
|
- | ||||
| 46 | 65275-21 | Screw, Center Hinge | - |
|
- |
