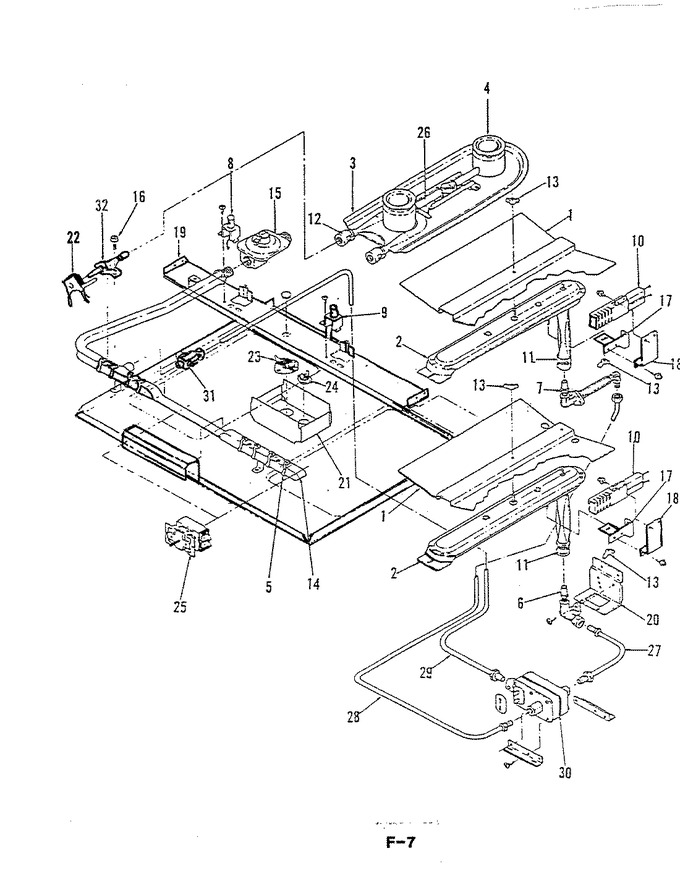

03 - Gas Controls
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F111-13 | Baffle, Bake&broil | 01 |
|
- | ||||
| 1 | 3801F096-45 | Bracket, H.l. Swit | 01 |
|
- | ||||
| 1 | 3601W129-13 | Baffle, Assy | 08 |
|
- | ||||
| 2 | 7505P100-60 | Burner, Bake & Broil | 01 |
|
- | ||||
| 2 | 3403A015-45 | Burner Oven | 34 |
|
- | ||||
| 2 | 3403A016-45 | Burner Assy Broil | 34 |
|
- | ||||
| 2 | 7505P101-60 | Burner | 01 |
|
- | ||||
| 3 | Y0300252 | + Burner Assy., Top | 01 |
|
- | ||||
| 4 | 1083219 | Cap, Burner | 01 |
|
- | ||||
| 5 | 4005F176-80 | Cover, Module | 01 |
|
- | ||||
| 5 | 1141225 | Clip | 01 |
|
- | ||||
| 6 | 7507P024-60 | Fitting, Broil Burne | 01 |
|
- | ||||
| 7 | 7507P028-60 | Fitting, Broil Burner | 01 |
|
- | ||||
| 8 | 1482223 | Ignitor | 01 |
|
- | ||||
| 9 | 1482222 | Ignitor | 01 |
|
- | ||||
| 10 | 7711P322-60 | Knob, Thermostat | 01 |
|
- | ||||
| 10 | WP7711P135-60 | Knob, Valve (Replaces: 7733P038-60) | 20 |
|
$ 25.06 | ||||
| 10 | 12400035 | Igniter, Bake Burner (Replaces: 7432P052-60) | 01 |
|
Immediately | $ 60.44 | |||
| 10 | 7731P020-60 | Knob, Thermostat | 20 |
|
- | ||||
| 10 | 7711P173-60 | Knob, Valve | 01 |
|
- | ||||
| 11 | 0607214 | Mixer, Air | 01 |
|
- | ||||
| 12 | Y0607215 | Mixer, Air | 01 |
|
- | ||||
| 12 | 1522102 | Module, Spark | 01 |
|
- | ||||
| 13 | 1555254 | Wing Nut | 01 |
|
- | ||||
| 14 | 7513P103-60 | Pipe Manifold | 34 |
|
- | ||||
| 14 | 7513P044-60 | Pipe, Manifold | 01 |
|
- | ||||
| 15 | 1665248 | Regulator, Pressure | 01 |
|
- | ||||
| 16 | 3411F006-35 | Mixer, Air | 34 |
|
- | ||||
| 16 | 1986319 | Screw Valve | 01 |
|
- | ||||
| 16 | 3411F006-34 | Mixer Air Oven Burner | 01 |
|
- | ||||
| 17 | 0862434 | Support | 01 |
|
- | ||||
| 18 | 0862420 | Support | 01 |
|
- | ||||
| 19 | 3807F221-80 | Support, Top Burner | 01 |
|
- | ||||
| 20 | 3807F216-45 | Support, Valve | 01 |
|
- | ||||
| 21 | 3807F219-51 | Support, Therm Disc | 01 |
|
- | ||||
| 22 | 7403P235-60 | Switch, Lighter Burner | 34 |
|
- | ||||
| 22 | WP7403P190-60 | Switch, Top Burner (Replaces: 7403P041-60) | 01 |
|
$ 118.82 | ||||
| 23 | 7403P091-60 | Switch, Thermal | 01 |
|
- | ||||
| 24 | 7403P187-60 | Switch, Hi Limit | 01 |
|
- | ||||
| 25 | 7515E005 | Thermostat, Gas | 01 |
|
- | ||||
| 25 | 7515P020-60 | Thermostat, Ov | 09 |
|
- | ||||
| 25 | 7404P064-60 | Thermostat | 30 |
|
- | ||||
| 26 | 1930342 | Tube | 01 |
|
- | ||||
| 27 | Y0936104 | 3/8 X 8 Tubing | 01 |
|
- | ||||
| 28 | Y0936103 | 3/8 X 45 Tubing | 01 |
|
- | ||||
| 29 | Y0936102 | 3/8 X 72 Tubing | 01 |
|
- | ||||
| 30 | 7501P034-60 | Valve, Broil & Bake | 12 |
|
- | ||||
| 30 | 7501P095-60 | Valve, Broil & Bake - Nat | 34 |
|
- | ||||
| 30 | 7501P030-60 | Valve, Oven | 01 |
|
- | ||||
| 31 | 1951367 | Valve, Shut Off | 01 |
|
- | ||||
| 32 | 1951372 | Valve, Top Burner | 01 |
|
- | ||||
| 32 | 7502P111-60 | Valve, Burner | 16 |
|
- | ||||
| 32 | 7502P224-60 | Valve | 34 |
|
- |
