Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001334		Cover-fan		Appelez-nous	-
2	5316274722		Knob-damper Cont		Appelez-nous	-
3	5303001028		Push-nut		Appelez-nous	-
4	5303001331		Damper, Fan				$ 31.71
5	5308000010		Fan Blade			Immediately	$ 49.03
6	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
7	5308000124		Orifice Ring				$ 53.58
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303001226		Bracket-front		Appelez-nous	-
10	3001358		Cover-evaporator		Appelez-nous	-
11	5303208309		Plug, Short Test Hole				$ 45.50
12	3001328		Plug-ice Maker Hole		Appelez-nous	-
13	5300158289		Motor, Fan			Immediately	$ 149.94
14	5303205119		Bracket, Rear		Appelez-nous	-
15	5308000107		Bracket-connector				$ 33.23
16	5303210353		Screw-bracket Mtg		Appelez-nous	-
17	08003638		Drain Trough		Appelez-nous	-
18	5308000097		Support-evap Cover		Appelez-nous	-
19	5303001198		Tube, Rubber (2)		Appelez-nous	-
20	5303001286		Ferrule-inner		Appelez-nous	-
21	5303001287		Ferrule-outer		Appelez-nous	-
22	5303001389		Plug, Almond (2)		Appelez-nous	-
22	5303001388		Plug, White (2)				$ 2.60
22	5303001677		Plug, Avocado (2)		Appelez-nous	-
22	5303001678		Plug, Wheat (2)		Appelez-nous	-
22	5303001679		Plug, Coffee (2)		Appelez-nous	-
23	5303001386		Drain Tube		Appelez-nous	-
24	5308012843		Hinge-top				$ 71.47
25	5303001037		Shim, Top Hinge				$ 12.39
26	5303006086		Base-cabinet		Appelez-nous	-
27	5303205540		Leveling Screw (2)		Appelez-nous	-
28	5308003584		Anchor Nut (2)				$ 7.30
29	3001478		Plug-hinge Hole		Appelez-nous	-
30	5308010251		Bracket, Bottom Hinge		Appelez-nous	-
31	5303001323		Shim, Bottom Hinge		Appelez-nous	-
32	5303001321		Pin, Bottom Hinge				$ 17.25
33	5308000007		Washer-1/4 Nylon (3)		Appelez-nous	-
34	5303001038		Washer-5/16 Nylon (2)				$ 13.34
35	5303001369		Bracket- Center Hinge		Appelez-nous	-
36	5308000184		Pin-center Hinge				$ 8.87
37	5316236408		Corner Trim-avocado		Appelez-nous	-
37	08003615		Corner Trim-coffee		Appelez-nous	-
37	08003618		Corner Trim-almond		Appelez-nous	-
37	5308003617		Corner Trim-wheat		Appelez-nous	-
37	5308003582		Corner Trim-white		Appelez-nous	-
38	5308012933		Hinge Cover, Almond		Appelez-nous	-
38	5308012820		Hinge Cover, White		Appelez-nous	-
38	5303001664		Hinge Cover, Avoc		Appelez-nous	-
38	5303001665		Hinge Cover, Wheat		Appelez-nous	-
38	5303001666		Hinge Cover, Coffee		Appelez-nous	-
*38348	5308016571		Plug-freezer Liner (8)				$ 4.79
10A	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
10B	5303209814		Nut-type U (2) (non-illustrated)		Appelez-nous	-
1A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
24A	241710601		Screw   (Replaces: 5303001479)				$ 13.46
30A	5303001320		Screw-hinge Mtg (2) (non-illustrated)		Appelez-nous	-
30B	5308012296		Tapping Plate (non-illustrated)				$ 47.44
35A	5308012258		Screw				$ 2.25
35B	5308003607		Washer-no. 10 Steel (2) (non-illustrated)				$ 1.00

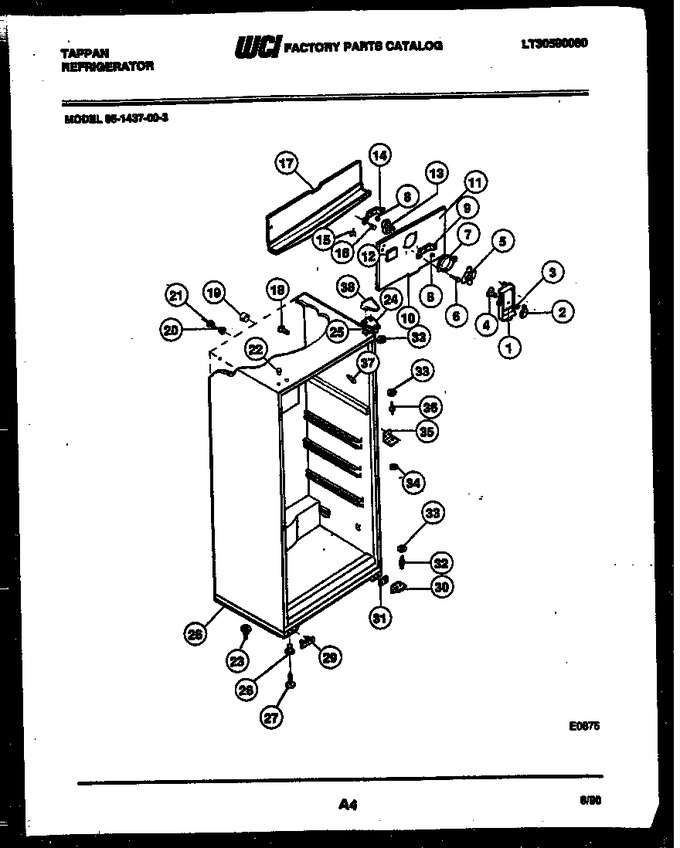

    View Diagram in Separate Window       Print Part List
