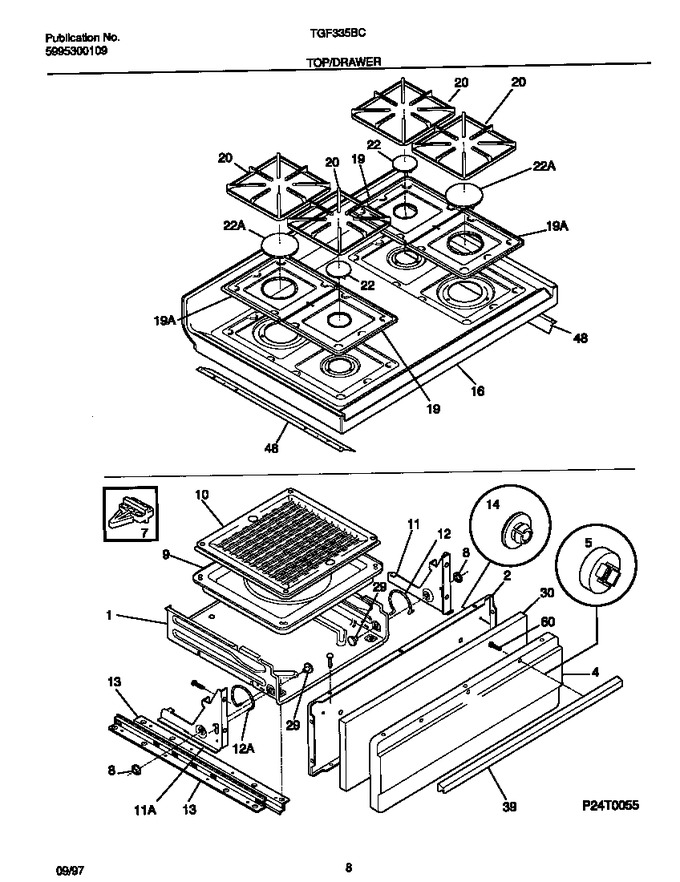

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3018608		Drawer-broiler		Appelez-nous	-
2	3202803		Liner, Broiler Door		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
7	3018610		Glide-broiler				$ 29.40
8	3131386		Nut, Push-on, (2)		Appelez-nous	-
9	5303013568		Pan-broiler		Appelez-nous	-
10	5303131356		Insert-broiler Pan		Appelez-nous	-
11	316066301		Bracket-hinge, Broiler Rh		Appelez-nous	-
11	316066300		Bracket-hinge, Broiler Lh		Appelez-nous	-
12	3018619		Spring-broiler, Rh		Appelez-nous	-
12	3018618		Spring-broiler, Lh		Appelez-nous	-
13	3131153		Channel-broiler		Appelez-nous	-
14	3206216		Plug-button, Glide		Appelez-nous	-
16	5303307710		Main Top, Almond		Appelez-nous	-
19	316011415		Pan-burner, Black, Small, (2)				$ 53.60
19	316011419		Pan-burner, Black, Large, (2)				$ 102.90
20	316085201		Grate, (4)		Appelez-nous	-
22	316011014		Cap-burner, Matte Black, (4), Small		Appelez-nous	-
22	316011015		Cap-burner, Matte Black, Large, (2)		Appelez-nous	-
29	3018614		Pin-hinge		Appelez-nous	-
30	5303131258		Insulation, Broiler Drawer		Appelez-nous	-
39	316019507		Handle-drawer, Almond		Appelez-nous	-
48	316077401		Shield-maintop		Appelez-nous	-
60	5303281651		Screw-drawer Handle, 8 Truss Head, 10-16 X 1/2		Appelez-nous	-
*34807	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*34808	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*34809	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*34810	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
