SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

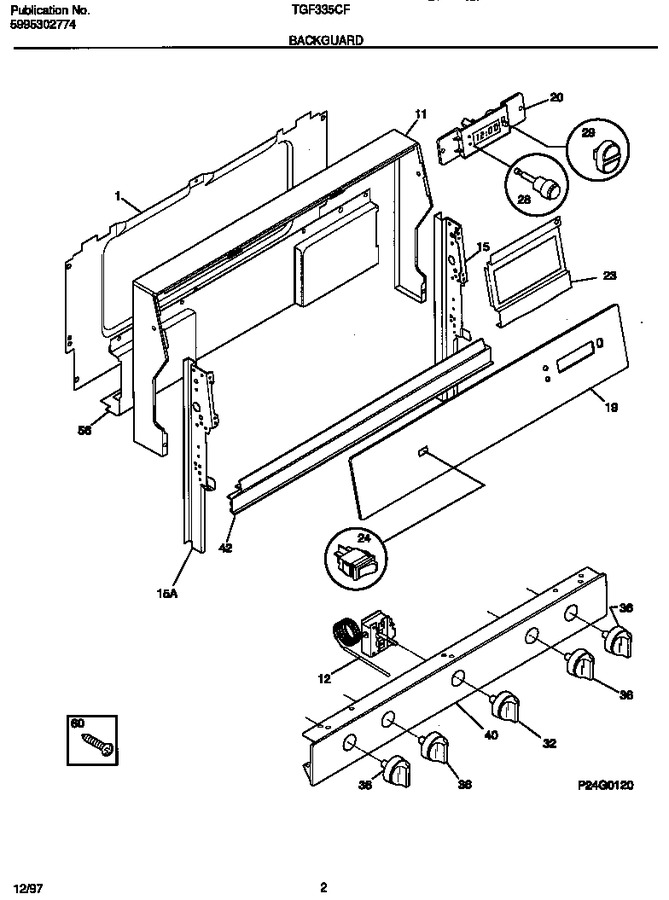

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
11	316061848		Trim-wrapper, Almond		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
19	316082640		Panel-control, Almond		Appelez-nous	-
20	316096001		Clock/timer		Appelez-nous	-
23	316079002		Bracket-clock Mtg		Appelez-nous	-
24	316005608		Switch-rocker		Appelez-nous	-
28	316017304		Push Button, Clock Set, Almond, (2)		Appelez-nous	-
29	316028403		Button-selector, Clock/timer, Almond				$ 38.01
32	316022917		Knob-thermostat		Appelez-nous	-
36	316023022		Knob-control, Almond, (4)		Appelez-nous	-
40	316086837		Panel-manifold, Almond		Appelez-nous	-
42	316083300		Trim-vent		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*90640	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*90641	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
