SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - System And Automatic Defrost Parts

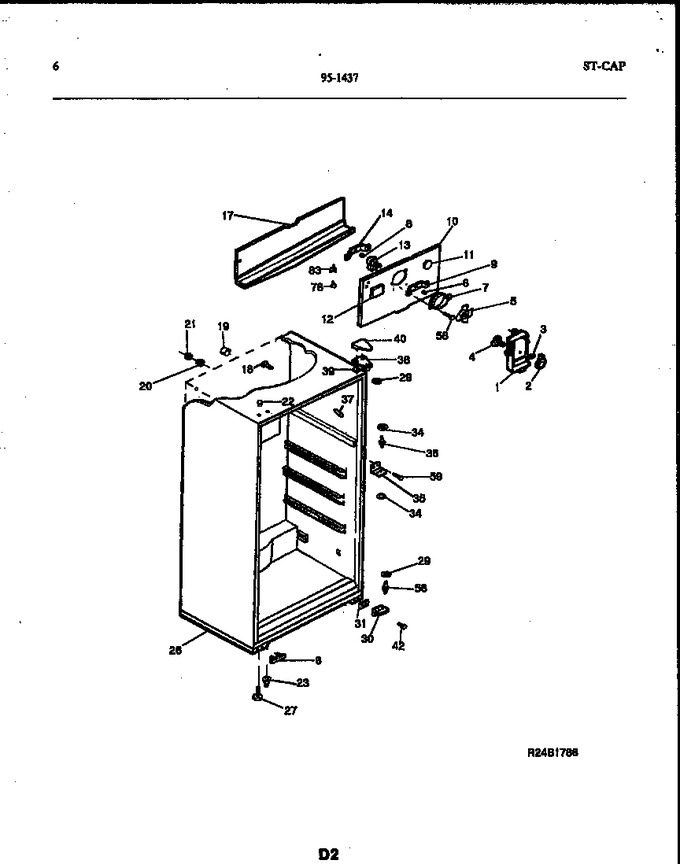

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
39	5303001037		Shim - Upper Hinge				$ 12.39
40	5308012820		Cover-upper Hinge, White		Appelez-nous	-
42	5303001320		Screw, Hinge/gusset, Hx Wshr Hd Mach, 1/4, 20 X 5/8, (6)		Appelez-nous	-
56	5303001321		Pin-lower Hinge				$ 17.25
58	5308002748		Screw		Appelez-nous	-
59	5308012258		Screw				$ 2.25
78	5303210353		Screw, Connectr Brkt, Hex Washer Head, 8, 32(ca) X 1/2		Appelez-nous	-
83	5308000107		Bracket-connector				$ 33.23
*67889	5308016571		Plug-button, Liner				$ 4.79
38B	5308012296		Tapping Plate, Upper Hinge, (2) (non-illustrated)				$ 47.44

    View Diagram in Separate Window       Print Part List
