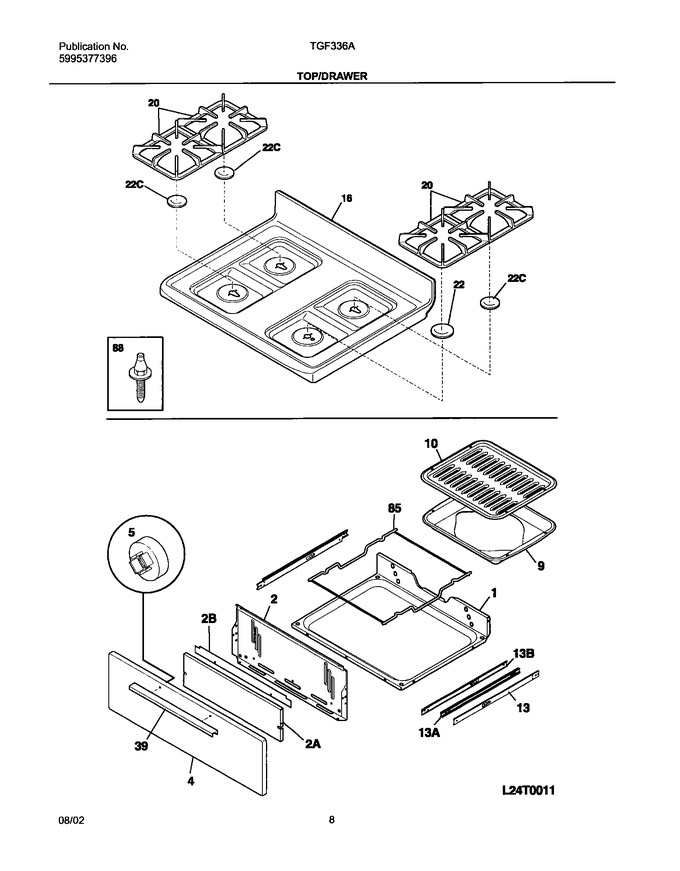

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage,low Broil				$ 232.57
2	316236401		Liner,low Broil				$ 119.96
4	316231214		Panel,drawer ,bisque		Appelez-nous	-
5	316129100		Fastener,push-in Nut ,nylon ,spacer		Appelez-nous	-
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
13	316111502		Glide,low Broil ,chassis		Appelez-nous	-
16	316202334		Main Top,bisque		Appelez-nous	-
20	316213800		Grate,black		Appelez-nous	-
22	316213600		Cap,12k Burner ,black				$ 130.08
39	316019513		Handle,drawer ,bisque		Appelez-nous	-
85	316115600		Rack-low Broil				$ 105.47
88	316099500		Pin,guide ,(2)				$ 6.53
13A	316111600		Glide-low Broil,inner		Appelez-nous	-
13B	316111501		Glide-low Broil,outer		Appelez-nous	-
22C	316213500		Cap,9.5k Burner ,black				$ 43.23
2A	316110800		Shield,broiler		Appelez-nous	-
2B	316237600		Shield,low Broil ,top		Appelez-nous	-
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021120		Screw,shoulder Head ,8-18 X 5/8 ,(2) ,square Drive				$ 13.28
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
