SELECT A DIAGRAM

01 - Door (inner)


02 - Door (outer)


03 - Freezer Compartment


04 - Fresh Food Compartment


05 - Optional Ice Maker Kit (rae3100aax)


06 - Shelves & Accessories


07 - Unit Compartment & System


08 - Wiring Information

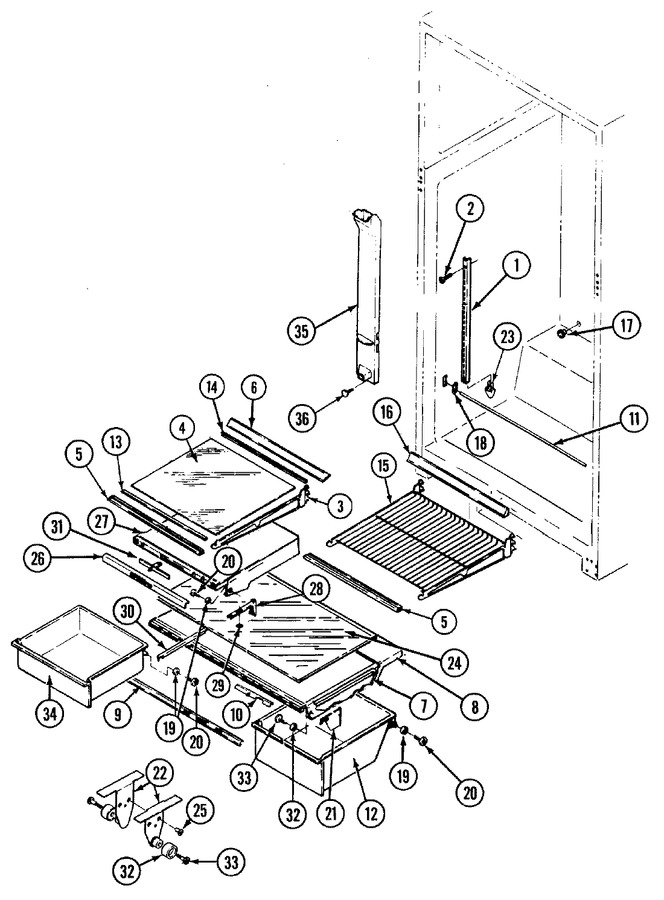

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-9		Rail, Shelf Support (center)	10	Appelez-nous	-
1	60096-7		Rail, Shelf Support (lt)	10	Appelez-nous	-
1	60096-8		Rail, Shelf Support (rt)	10	Appelez-nous	-
2	400037-28		Screw	10	Appelez-nous	-
3	67269-1		Frame, Meat Shelf	10	Appelez-nous	-
4	67267-13		Glass, Shelf	10	Appelez-nous	-
5	61001055		Trim, Shelf (frt)	10	Appelez-nous	-
6	61001056		Trim, Shelf (rear)	10	Appelez-nous	-
7	69779-3		Seal, Crisper Shelf (side)	10	Appelez-nous	-
8	70042-1		Shelf, Crisper	10	Appelez-nous	-
9	61001057		Trim, Crisper Shelf	10	Appelez-nous	-
10	67491-2		Slide, Control	10	Appelez-nous	-
11	68756-6		U-rail, Crisper	10	Appelez-nous	-
12	69928-12		Pan, Crisper	10	Appelez-nous	-
12	69928-9		Pan, Crisper	10	Appelez-nous	-
13	67265-1		Seal, Shelf (front)	10	Appelez-nous	-
14	67266-1		Seal, Shelf (rear)	10	Appelez-nous	-
15	67271-1		Shelf, Cantilever	10	Appelez-nous	-
16	61001058		Trim, Shelf (rear)	10	Appelez-nous	-
17	67163-1		Grommet, Crisper Shelf	10	Appelez-nous	-
18	68757-1		Cup, U-rail Support	10	Appelez-nous	-
19	67423-2		Roller	10			$ 20.83
20	65275-6		Screw	10			$ 5.48
21	67895-1		Support, Crisper Shelf (lt)	10	Appelez-nous	-
21	65275-28		Screw	10	Appelez-nous	-
21	67895-2		Support, Crisper Shelf (rt)	10	Appelez-nous	-
22	67464-2		Bracket, Center Roller	10	Appelez-nous	-
23	60340-1		End Cap, Center Rail	10	Appelez-nous	-
24	69897-1		Glass, Crisper Shelf	10	Appelez-nous	-
25	WP210720		Rivet   (Replaces: 26397-6)	10			$ 12.14
26	61001050		Trim, Meat Pan Support	10	Appelez-nous	-
27	67649-15		Support, Meat Pan	10	Appelez-nous	-
28	67072-11		Actuator, Meat Pan	10	Appelez-nous	-
29	431019-511		Nut	10	Appelez-nous	-
30	67073-4		Linkage, Meat Pan	10	Appelez-nous	-
31	67074-2		Slide, Control	10	Appelez-nous	-
32	67423-2		Roller	10			$ 20.83
33	65275-34		Screw	10	Appelez-nous	-
34	69928-10		Pan, Meat	10	Appelez-nous	-
35	69574-3		Tunnel, Air	10	Appelez-nous	-
36	W11233072		Screw   (Replaces: 400015-31)	10		Immediately	$ 12.62

    View Diagram in Separate Window       Print Part List
