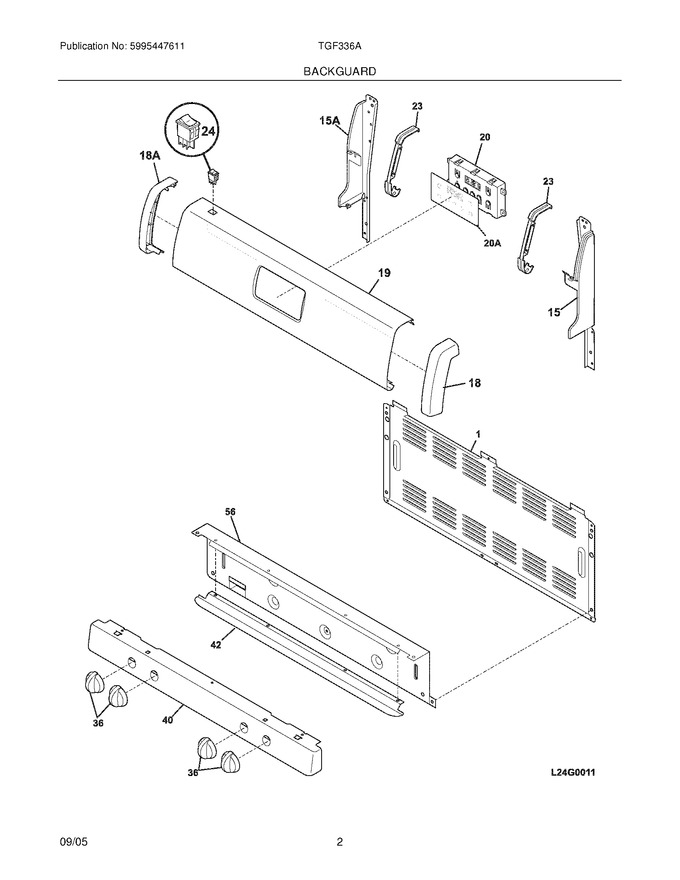

1	316239900		Shield,backguard ,rear Wall				$ 93.03
15	316220216		Support,backguard ,black ,rh				$ 79.85
18	316240904		End Cap,black ,rh		Appelez-nous	-
19	316244405		Panel,backguard ,black		Appelez-nous	-
23	316245900		Bracket,clock Mtg		Appelez-nous	-
36	316220002		Knob,top Valve ,black ,(4)			Immediately	$ 56.70
40	316204990		Panel,manifold ,black		Appelez-nous	-
42	316277300		Trim,extrusion ,black		Appelez-nous	-
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
15A	316220217		Support,backguard ,black ,lh				$ 61.32
18A	316240905		End Cap,black ,lh		Appelez-nous	-
20A	316220705		Overlay,clock ,black		Appelez-nous	-
F20	5304518661		Clock/timer,electronic ,es100   (Replaces: 316222802)			Immediately	$ 148.07
F24	316280100		Switch,rocker ,black		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
