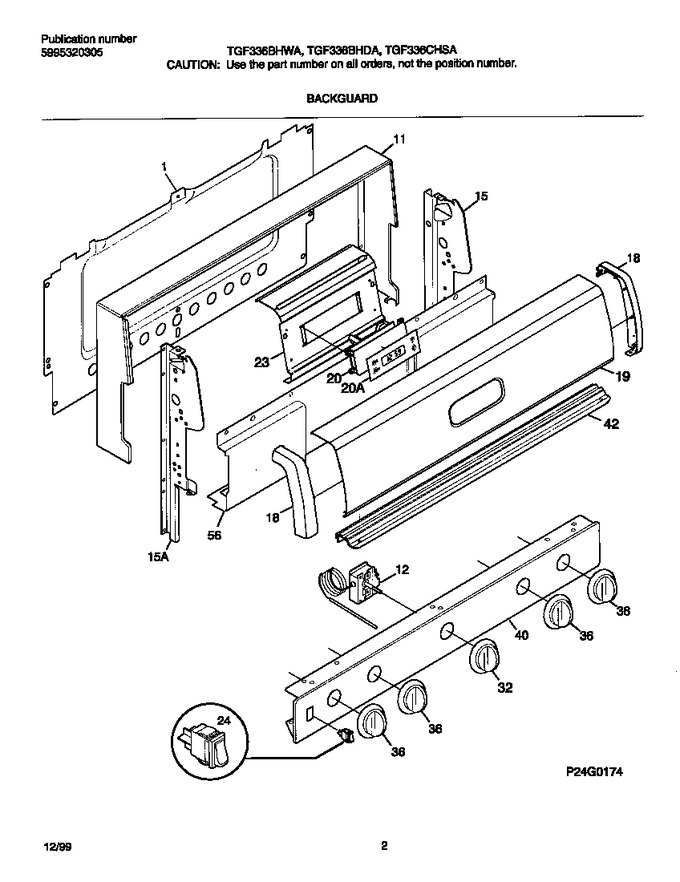

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
11	316061856		Trim-wrapper,textured ,black		Appelez-nous	-
12	316032411		Thermostat   (Replaces: 316032404)			Immediately	$ 165.14
15	316023109		Support,backguard ,lh		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
18	316115204		Cap-end, Black , Rh		Appelez-nous	-
18	316115205		Cap-end, Black		Appelez-nous	-
19	316115007		Panel-backguard		Appelez-nous	-
20	316115302		Overlay		Appelez-nous	-
20	316116200		Clock-timer		Appelez-nous	-
20	316115100		Bracket		Appelez-nous	-
24	5304527841		Switch-rocker, Black   (Replaces: 316118100)			Immediately	$ 11.38
32	316109506		Knob,thermostat ,black				$ 67.20
36	316109502		Knob-top Valve,black		Appelez-nous	-
40	316086862		Panel-manifold, Black		Appelez-nous	-
53	316055202		Extrusion, Bottom Trim		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
*47760	5303322885		Spacer		Appelez-nous	-
*47761	316002172		Diagram-wiring		Appelez-nous	-
*47762	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*47763	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*47765	316112500		Template, Anti-tip Bracket				$ 3.55

    View Diagram in Separate Window       Print Part List
