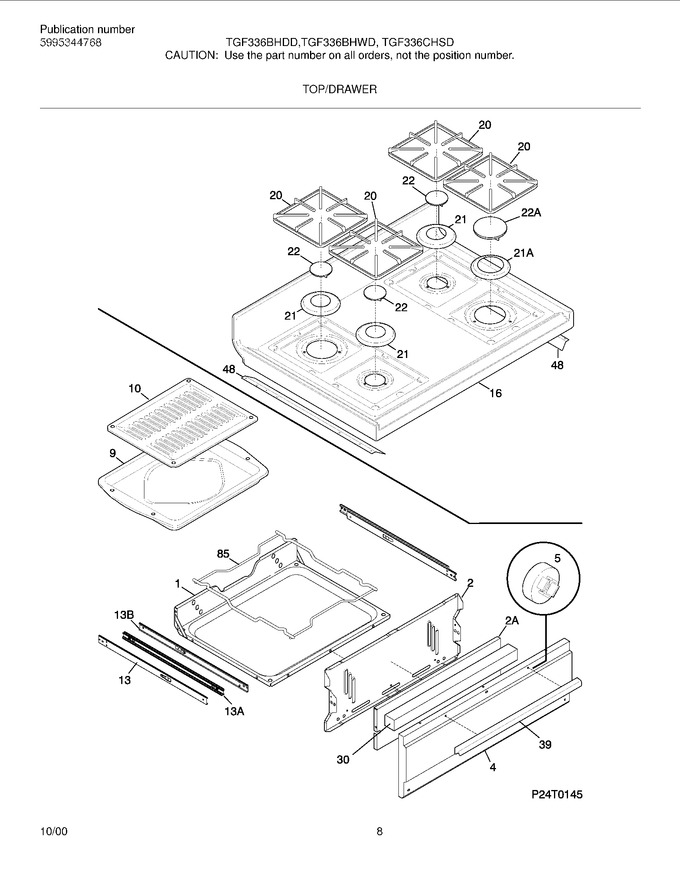

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage, Broiler				$ 232.57
2	316110101		Liner-low Broil		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
5	316129100		Fastener-spacer,push-in Nut ,nylon		Appelez-nous	-
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
13	316111502		Glide-low Broil, Inner		Appelez-nous	-
16	316114802		Maintop, White		Appelez-nous	-
21	316011300		Trim Ring-burner, Black, Small				$ 68.59
22	316011304		Trim-ring-burner, Black, Large				$ 97.23
30	316111400		Insulation,broiler Drawer		Appelez-nous	-
39	316019508		Handle,drawer ,almond		Appelez-nous	-
48	316077401		Shield-maintop		Appelez-nous	-
85	316115600		Rack-low Broil				$ 105.47
13A	316111600		Glide-drawer,inner		Appelez-nous	-
13B	316111501		Glide-low Broil,outer		Appelez-nous	-
2A	316110800		Shield,broiler		Appelez-nous	-
F20	316085201		Grate, Black		Appelez-nous	-
F22	316010901		Cap Burner				$ 69.01
F22A	316111703		Cap-burner, Gloss Black ,large		Appelez-nous	-
NI	316021120		Screw, 8-18 X 5/8 ,shoulder Sqdr				$ 13.28
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	316021113		Screw-8-18x1/2 Tr Sqd Almond		Appelez-nous	-
NI	316021109		Screw,semi Gim ,8-18 X 1/2 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
