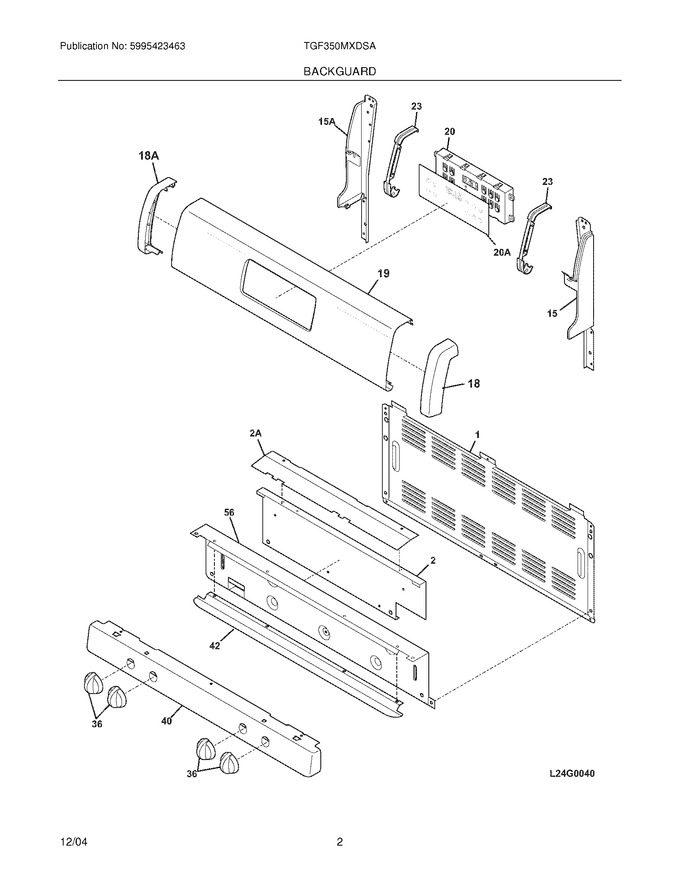

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316239900		Shield,backguard ,rear Wall				$ 93.03
2	316051600		Shield,backguard ,inner		Appelez-nous	-
15	316220214		Support,backguard ,white ,rh		Appelez-nous	-
18	316240900		End Cap,white ,rh				$ 49.09
19	316244475		Panel,backguard ,white		Appelez-nous	-
23	316245900		Bracket,clock Mtg		Appelez-nous	-
36	316220000		Knob,top Valve ,white ,(4)				$ 77.97
40	316204923		Panel,manifold ,white		Appelez-nous	-
42	316277301		Trim,extrusion ,gray		Appelez-nous	-
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
15A	316220215		Support,backguard ,white ,lh				$ 86.05
18A	316240901		End Cap,white ,lh				$ 45.62
20A	316419113		Overlay,clock ,white ,es200		Appelez-nous	-
2A	316235100		Shield-top Inner		Appelez-nous	-
F20	316418205		Clock/timer,electronic ,es200		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
