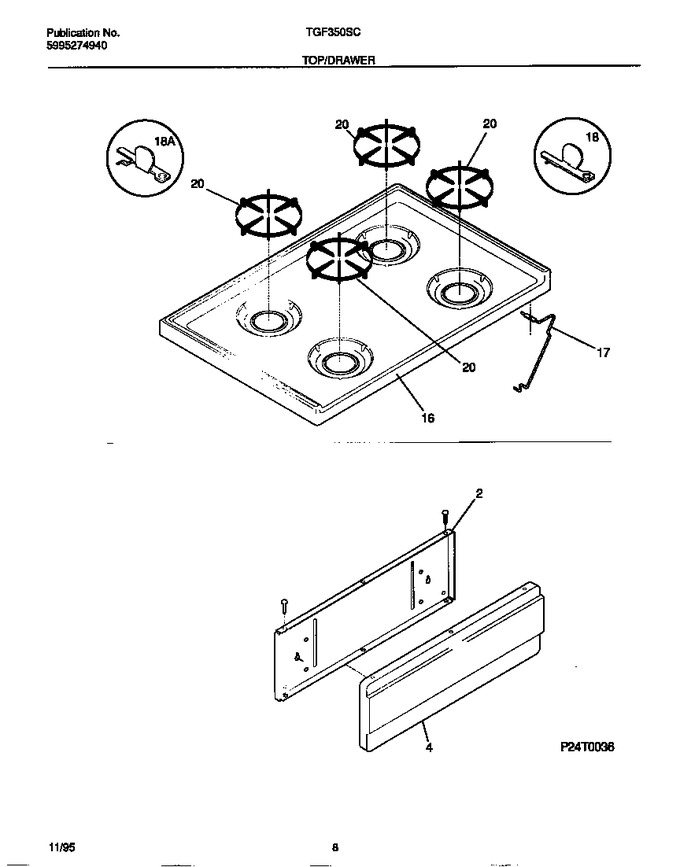

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3131975		Shield-panel		Appelez-nous	-
4	3051201		Panel-dummy, White		Appelez-nous	-
4	3200612		Spacer, Panel/shield (not Illustrated)		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
16	3131351		Main Top,white		Appelez-nous	-
17	316066900		Rod-maintop Support				$ 66.31
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
20	316085201		Grate, (4)		Appelez-nous	-
*39048	3017527		Foil-aluminum		Appelez-nous	-
*39049	3018702		Plug-button,glide ,(4)		Appelez-nous	-
*39050	3203618		Rivet-pop, Waring-plate		Appelez-nous	-
*39051	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
