Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 554T197F06-18 Plate-instrument Mtg. Appelez-nous -
2 241T017P44 Fastener-clock Mtg (4) Appelez-nous -
3 695T164P19 Switch-oven Light Appelez-nous -
4 318T023P05 Indicator Light (amber) Oven Appelez-nous -
5 720T031P10 Thermostat-oven (upper Oven) Appelez-nous -
6 697T029P06 Switch-selector (5 Pos.) Appelez-nous -
7 148T088P08 Clock-3 Stem Appelez-nous -
8 740T097F09 Trim-control Panel Glass (ends) (2) Appelez-nous -
9 479T089P01 Hex Nut (32-15/32) Light Switch Mtg. (2) Appelez-nous -
10 636T096P23 Screw (8-32 X 3/16`` Ph.tr.hd.) Switch Mtg. (4) Appelez-nous -
11 277166P50 Control Panel-glass Appelez-nous -
13 358T169P04 Knob-thermostat (adj.) Appelez-nous -
14 358T142P124 Knob-selector Switch Appelez-nous -
15 045T064P04 Bezel-light Switch Appelez-nous -
16 358T146P01 Knob, Clock (3) Appelez-nous -
17 3051384 Fuse-thermal Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

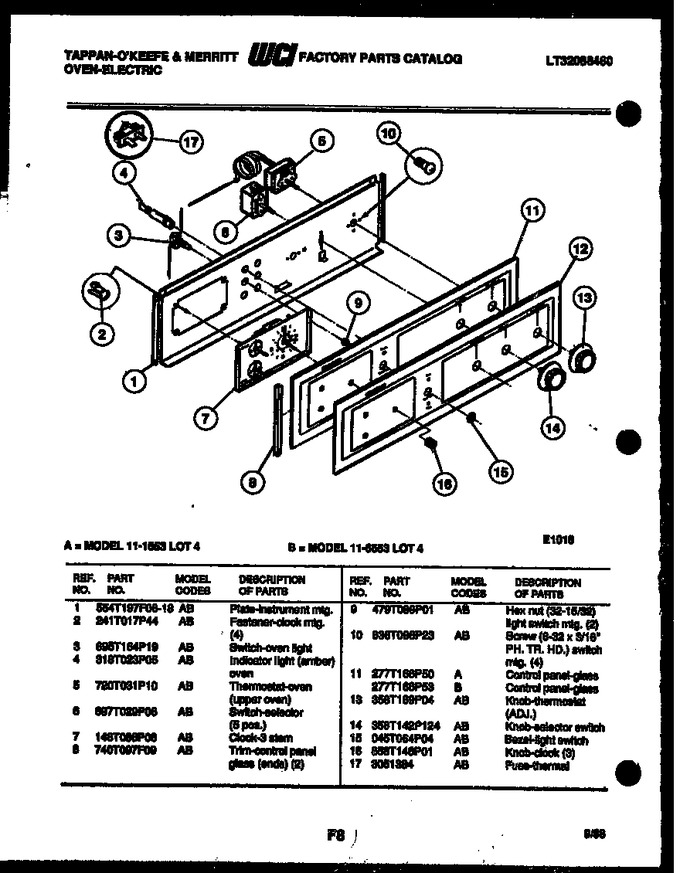

Diagram for 11-1553-00-04
