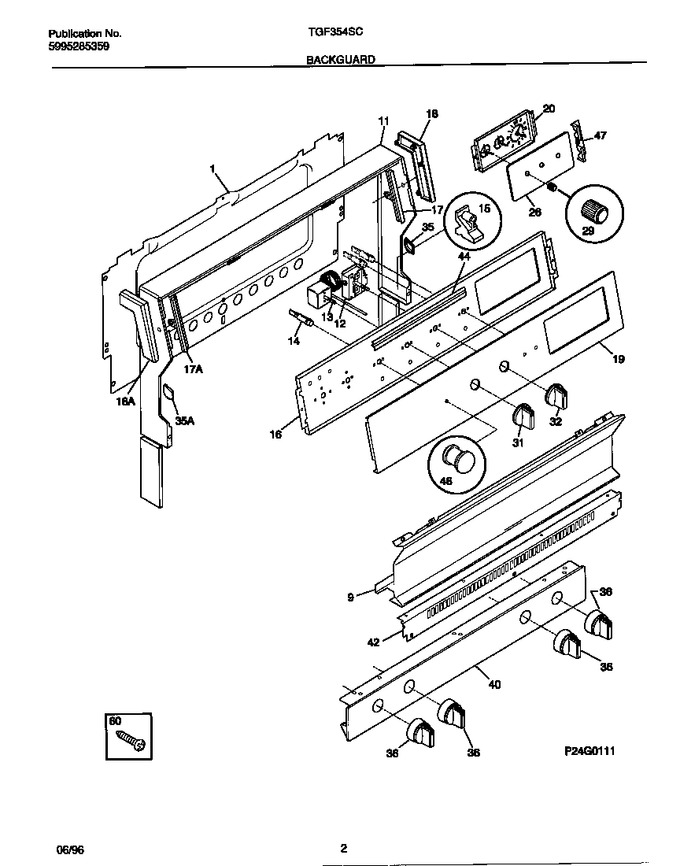

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316043502		Trim, Splasher, Almond		Appelez-nous	-
11	3204755		Trim, Wrapper		Appelez-nous	-
12	5303271746		Thermostat-oven				$ 414.28
13	316073301		Switch-selector		Appelez-nous	-
14	5308037896		Indicator Light				$ 39.75
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
17	3204753		Trim-glass Retainer,lh		Appelez-nous	-
17	3204754		Trim-glass Retainer,rh		Appelez-nous	-
18	5303272308		End Cap,black ,rh		Appelez-nous	-
18	5303272307		End Cap,black ,lh		Appelez-nous	-
19	316034553		Panel-control		Appelez-nous	-
20	3204766		Clock/timer, Analog 3 Stem		Appelez-nous	-
26	3201695		Lens-clock, Glass		Appelez-nous	-
29	316029008		Knob-clock				$ 40.16
31	316087232		Knob-selector		Appelez-nous	-
32	316087231		Knob-thermostat		Appelez-nous	-
35	3203076		End Cap,lh		Appelez-nous	-
35	3203077		End Cap,rh		Appelez-nous	-
36	316023020		Knob-control, (4)		Appelez-nous	-
40	316086812		Panel-manifold		Appelez-nous	-
42	316084300		Trim-vent		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
46	316065801		Lens-light/lamp,indicator ,red		Appelez-nous	-
47	3201700		Retainer, Clock Glass, (2)		Appelez-nous	-
60	5303289970		Screw-end Cap Mtg,oval Head ,6-20ab X 1/2		Appelez-nous	-
*90280	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*90281	3204745		Bushing-ctrl Shaft		Appelez-nous	-
*90282	316001450		Harness-wiring, Backguard		Appelez-nous	-
*90283	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
*90284	5303272555		Clip-backguard		Appelez-nous	-
*90285	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
