SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

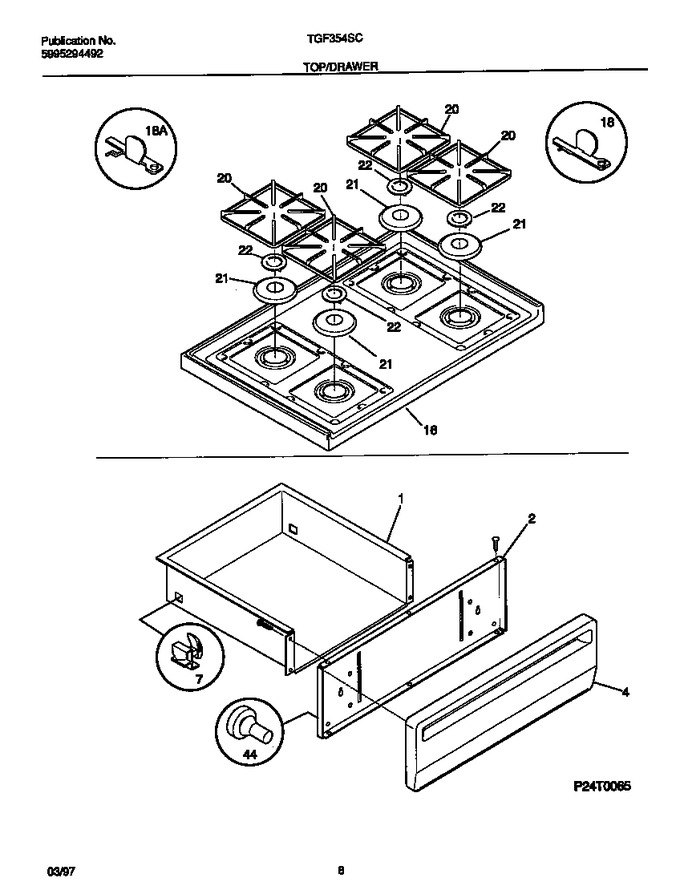

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316021109		Screw-drawer Pnl (not Illustrated)   (Replaces: 316021112)			Immediately	$ 27.50
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
4	316084405		Panel-drawer, White		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	316010408		Main Top, White		Appelez-nous	-
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
20	316085201		Grate, (4)		Appelez-nous	-
21	316011300		Trim Ring-burner, Black, Small, (4)				$ 68.59
22	316010901		Cap-burner, Black, (4)				$ 69.01
44	3131903		Bumper				$ 55.36
*28050	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*28051	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*28052	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*28053	316089600		Spacer-drawer, (2)		Appelez-nous	-
*28054	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*28055	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*28056	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
16A	5303271891		Gusset-top Mtg, Rh (not Illustrated)		Appelez-nous	-
16B	5303271892		Gusset-top Mtg, Lh (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
