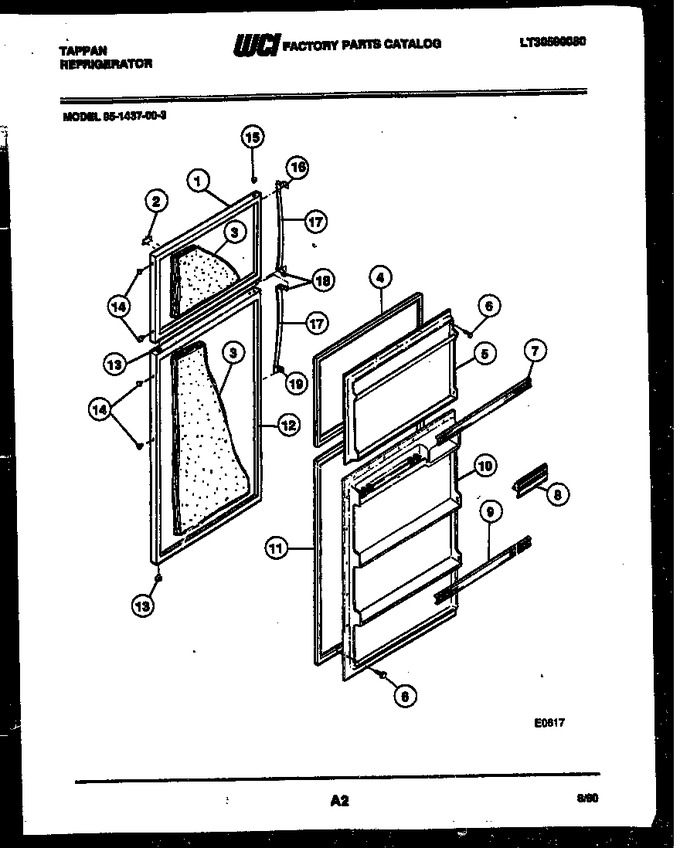

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5318622108 | Freezer Door-avoc |
|
- | |||||
| 2 | 3001312 | Name Plate |
|
- | |||||
| 3 | 5303007739 | Insulation-door (bulk) |
|
- | |||||
| 4 | 5303001399 | Gasket-freezer |
|
- | |||||
| 5 | 3001528 | Inner Panel-frzr |
|
- | |||||
| 6 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 7 | 3001511 | Rack-frzr Door |
|
- | |||||
| 8 | 3001538 | Dairy Door |
|
- | |||||
| 9 | 3001539 | Rack-refr Door (2) |
|
- | |||||
| 10 | 3001540 | Inner Panel-refr |
|
- | |||||
| 11 | 5303001398 | Gasket-refr Door |
|
- | |||||
| 12 | 5318623408 | Refr Door-avocado |
|
- | |||||
| 13 | 5308012007 | Bearing, Hinge (8) |
|
- | |||||
| 14 | 5308000179 | Plug-avocado (6) |
|
- | |||||
| 15 | 5308000175 | Plug-avocado |
|
- | |||||
| 16 | 5303001297 | Handle End Top |
|
$ 70.22 | |||||
| 17 | 3001531 | Grip-handle (2) |
|
- | |||||
| 18 | 5303001296 | Handle End, (2) |
|
$ 86.36 | |||||
| 19 | 5303001295 | Handle - End Bottom |
|
- | |||||
| *38342 | 5308011745 | Screw |
|
$ 10.38 |
