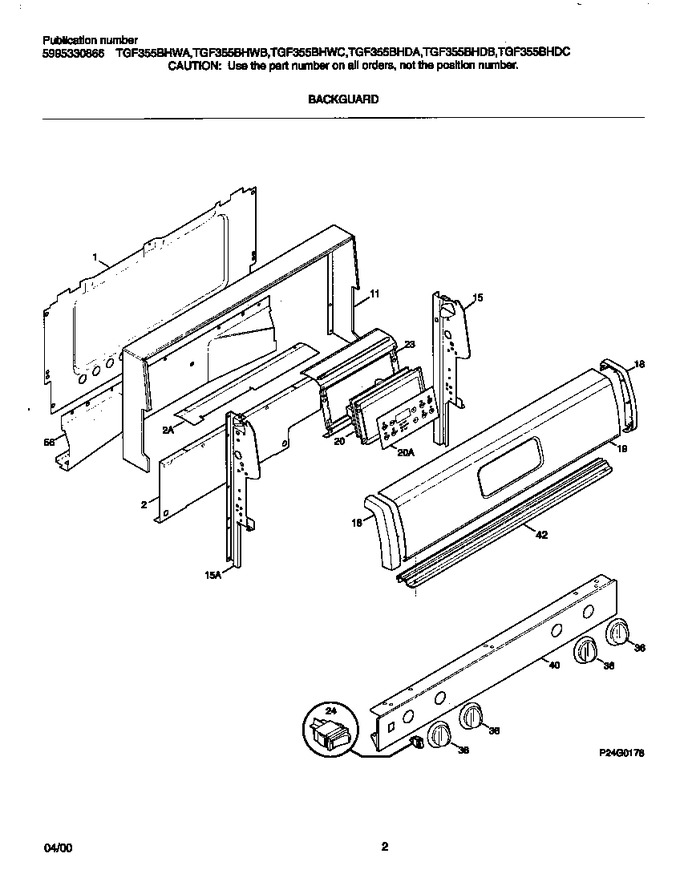

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	316061856		Trim-wrapper,textured ,black		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
18	316115215		End Cap,lh		Appelez-nous	-
18	316115214		End Cap,rh		Appelez-nous	-
20	316101000		Clock/timer, Electronic		Appelez-nous	-
24	316083101		Switch-rocker, Oven Light, Black, Rh				$ 85.01
36	316109502		Knob-top Valve,black		Appelez-nous	-
53	316055202		Extrusion, Bottom Trim		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
*63320	316001465		Wiring Harness,backguard		Appelez-nous	-
*63321	316519700		Screw,cup Pt ,8-18 X 0.375 ,hinge ,   (Replaces: 316021108)				$ 10.02
*63322	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*63323	316105822		Installation Instr		Appelez-nous	-
*63324	316112500		Template, Anti-tip Bracket				$ 3.55
*63325	316101527		Overlay-clock		Appelez-nous	-
*63326	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
