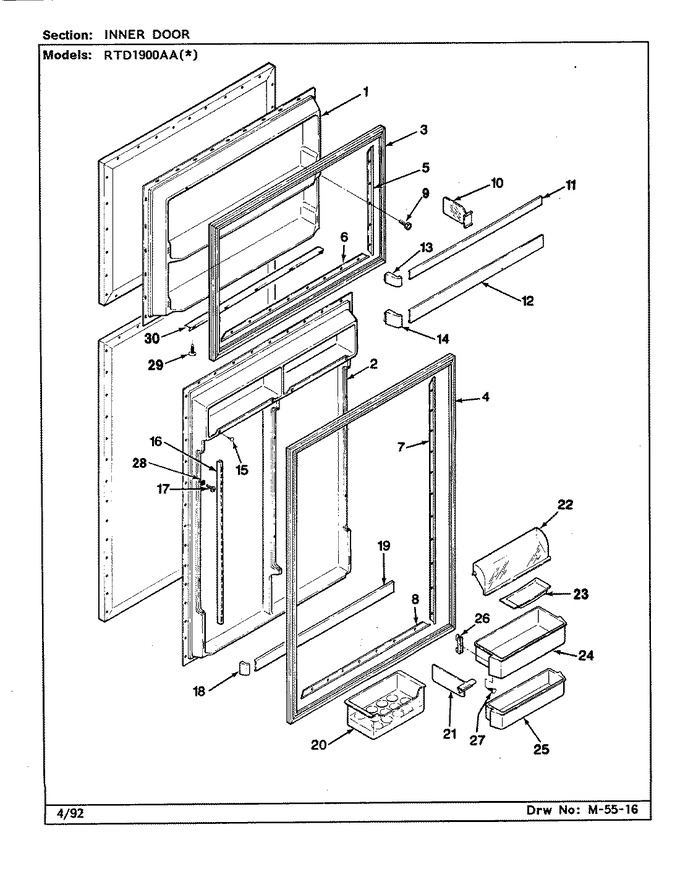

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006-2		Liner, Door	-	Appelez-nous	-
2	67008-1		Liner, F.f. Door	-	Appelez-nous	-
3	67781-5		Gasket, Frz. Door	-	Appelez-nous	-
4	67781-6		Gasket, F.f. Door	-	Appelez-nous	-
5	67033-8		Retainer, Frz. Gasket Side	-	Appelez-nous	-
6	67033-6		Retainer, Frz. Door Gasket	-	Appelez-nous	-
7	67033-5		Retainer, F.f. Door Gasket	-	Appelez-nous	-
8	67033-6		Retainer, Frz. Door Gasket	-	Appelez-nous	-
9	65275-5		Screw	-	Appelez-nous	-
10	67195-2		Organizer	-	Appelez-nous	-
11	67718-7		Trim, Door Shelf	-	Appelez-nous	-
12	67718-13		Trim, Door Shelf	-	Appelez-nous	-
13	67213-1		Endcap, Shelf Trim (sand Beige	-			$ 9.86
14	67208-1		Endcap, Shelf Trim	-			$ 11.62
15	28272-6		Bumper, Door	-	Appelez-nous	-
16	67317-1		Rail, P.o. Shelf	-	Appelez-nous	-
17	400027-28		Screw	-	Appelez-nous	-
18	67211-1		Endcap, Shelf Trim	-			$ 11.45
19	67718-17		Trim, Door Shelf	-	Appelez-nous	-
20	67215-1		Tray, Egg	-	Appelez-nous	-
21	67027-1		Organizer,p.o. Shelf	-	Appelez-nous	-
22	67041-2		Door, Dairy	-	Appelez-nous	-
23	67216-1		Tray, Butter	-	Appelez-nous	-
24	67065-5		Shelf, Pick Off	-	Appelez-nous	-
25	67065-1		Shelf, Pick Off	-	Appelez-nous	-
25	67065-2		Shelf, Pick Off	-	Appelez-nous	-
26	67043-5		Hook,p.o.shelf (right)   (Replaces: 67043-1)	-		Immediately	$ 32.93
26	67043-3		Hook, Pick Off Shelf	-	Appelez-nous	-
26	67043-4		Hook, Pick Off Shelf	-	Appelez-nous	-
26	67043-2		Hook,p.o. Shelf (left)	-	Appelez-nous	-
27	59920-8		Rivet, P.o. Hook	-	Appelez-nous	-
28	67144-1		Grommet, Pick-off	-	Appelez-nous	-
29	56686-5		Clip, Secondary Seal	-	Appelez-nous	-
30	68930-2		Gasket	-	Appelez-nous	-
