02 - Top And Console


03 - Drive


04 - Tub And Basket


05 - Cabinet


06 - Miscellaneous , Literature And Optional


07 - Gearcase


08 - Basket Drive And Brake


09 - Water System

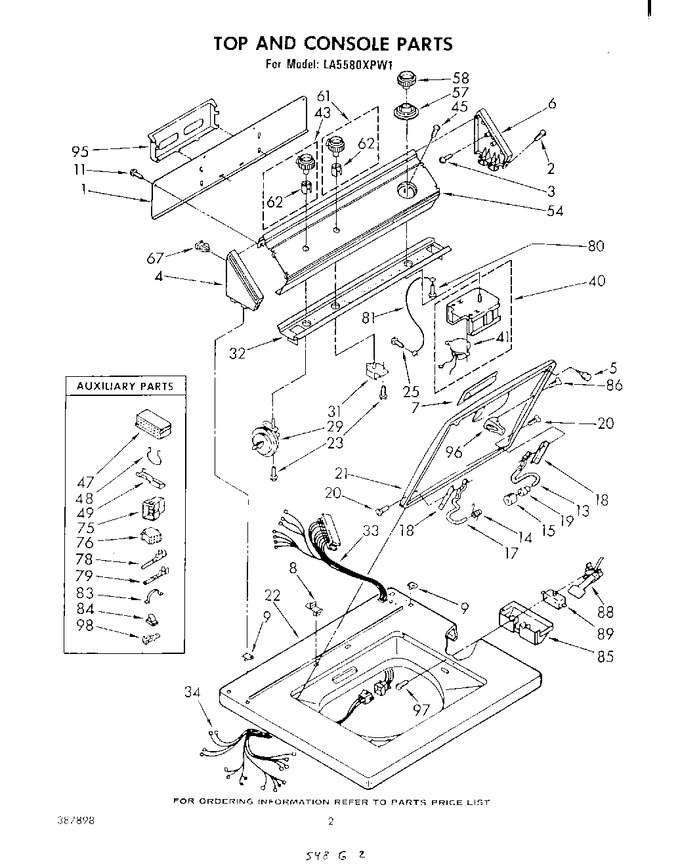

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	386367		Panel, Rear Console		Appelez-nous	-
2	WP388326		Screw, 8-18 X 1   (Replaces: 64211)				$ 7.30
3	355326		Screw, 13-16 X 5/8		Appelez-nous	-
4	63789		Cap, End (l.h.)		Appelez-nous	-
5	WP9724509		Bumper, Rubber   (Replaces: 93770)			Immediately	$ 7.14
6	63795		Cap, End. (r.h.)				$ 14.10
7	379888		Handle, Lid (golden Harvest)		Appelez-nous	-
7	379890		Handle, Lid (toast)		Appelez-nous	-
7	379891		Handle, Lid (platinum)		Appelez-nous	-
7	379884		Handle, Lid (white)		Appelez-nous	-
7	379885		Handle, Lid (almond)		Appelez-nous	-
8	358472		Stop, Push-in Top (1)		Appelez-nous	-
9	358473		Nut, Push-in (2)				$ 5.84
11	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 12.65
13	WP91770		Hinge, R.h.   (Replaces: 91770)				$ 24.71
14	DE81-05611A		Spring, Hinge (l.h.)   (Replaces: 92398)				$ 150.30
15	91605		Bumper, Lid Hinge (1)		Appelez-nous	-
17	91099		Hinge, L.h.		Appelez-nous	-
18	WP21097		Pad, Hinge (2)   (Replaces: 21097)				$ 7.02
19	WP21258		Bearing, Hinge (2)   (Replaces: 21258)			Immediately	$ 6.87
20	WPW10119828		Screw, Hinge Mounting   (Replaces: 18724)			Immediately	$ 6.47
21	384728		Lid (platinum)		Appelez-nous	-
21	384725		Lid (white)		Appelez-nous	-
21	384726		Lid (almond)		Appelez-nous	-
21	384729		Lid (golden Harvest)		Appelez-nous	-
21	384727		Lid (toast)		Appelez-nous	-
22	386926		Top (platinum)		Appelez-nous	-
22	386923		Top (white)		Appelez-nous	-
22	386924		Top (almond)		Appelez-nous	-
22	386927		Top (golden Harvest)		Appelez-nous	-
22	386925		Top (toast)		Appelez-nous	-
23	WP90767		Screw, 8 X 3/8   (Replaces: 90767)			Immediately	$ 7.04
25	WP3351614		Screw, 10 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
29	385053		Switch,\ Water\ Level		Appelez-nous	-
31	358935		Switch, Water Temperature (alt.)		Appelez-nous	-
31	660746		Switch, Water Temperature		Appelez-nous	-
31	358934		Switch, Water Temperature (alt.)		Appelez-nous	-
32	386627		Bracket, Control		Appelez-nous	-
33	387268		Harness, Console		Appelez-nous	-
34	358116		Harness, Cabinet		Appelez-nous	-
40	386883		Timer, 60 Hz. C.c.a. (alt.)		Appelez-nous	-
40	63491		Use W/mallory Timer		Appelez-nous	-
40	386886		Timer, 60 Hz. Mallory (alt.)		Appelez-nous	-
40	63493		Use W/cca Timer		Appelez-nous	-
40	660992		Timer, 60 Hz.		Appelez-nous	-
43	386629		Knob Assembly Water Level		Appelez-nous	-
45	WP356418		Screw, Timer Mounting   (Replaces: 96435)				$ 7.13
47	W10876590		Block, Disconnect   (Replaces: 352089)				$ 11.48
48	387551		Clip, Harness		Appelez-nous	-
49	352088		Terminal, Female				$ 5.83
54	63676		Panel, Control		Appelez-nous	-
57	387183		Dial, Timer				$ 35.42
58	386570		Knob, Timer		Appelez-nous	-
61	386630		Knob, Water Temperature				$ 65.25
62	WP688805		Clip, Control Knob   (Replaces: 688805)			Immediately	$ 7.03
67	689559		Nut, Push-in (4)		Appelez-nous	-
75	94612		Cap, Terminal (console Harness)		Appelez-nous	-
76	94611		Plug, Terminal (cabinet Harness)		Appelez-nous	-
78	94613		Terminal, (male)		Appelez-nous	-
79	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
80	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
81	3184020		Wire, Ground   (Replaces: 54570)				$ 74.50
83	WP98997		Clip   (Replaces: 98997)				$ 9.98
84	WP90016		Clip   (Replaces: 90016)				$ 10.19
85	WP359231		Shield, Lid Switch   (Replaces: 354289)				$ 7.58
86	354975		Screw & Washer		Appelez-nous	-
88	370959		Switch Actuator Assembly				$ 33.01
89	W10820036		Switch, Lid (alt.)   (Replaces: 364091)			Immediately	$ 27.45
89	W10820036		Switch, Lid   (Replaces: 660308)			Immediately	$ 27.45
89	00-6163		Switch, Lid (alt.)   (Replaces: 364090)				$ 22.92
89	W10820036		Switch, Lid (alt.)   (Replaces: 367034)			Immediately	$ 27.45
95	63020		Rack, Literature				$ 30.32
96	357633		Strike, Lid Switch		Appelez-nous	-
97	354764		Screw & Washer		Appelez-nous	-
98	357695		Ring, Grounding		Appelez-nous	-
