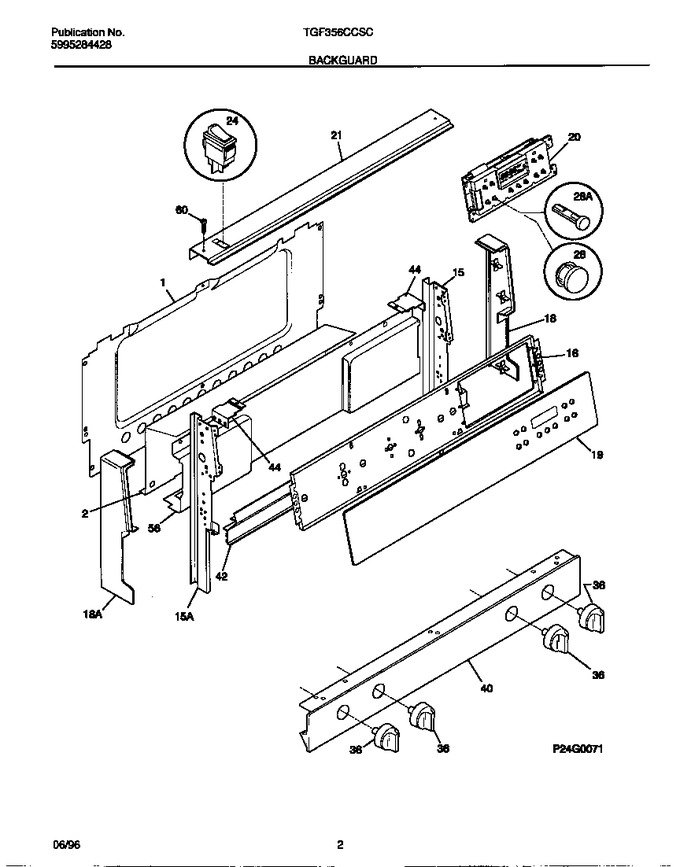

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316038801		Shield-backguard, Inner		Appelez-nous	-
15	316023110		Support-backguard, Rh		Appelez-nous	-
15	316023111		Support-backguard, Lh		Appelez-nous	-
16	316083601		Plate, Instrument Mtg		Appelez-nous	-
18	316021805		End Cap, White, Lh		Appelez-nous	-
18	316021804		End Cap, White, Rh		Appelez-nous	-
19	5303272836		Clip-backguard (not Illustrated)		Appelez-nous	-
19	316028350		Panel-control, Glass, White		Appelez-nous	-
20	316080102CP		Clock/timer, Eoc   (Replaces: 316080102)		Appelez-nous	-
21	316039202		Trim-canopy/shield, White		Appelez-nous	-
24	316060400		Switch-rocker, White		Appelez-nous	-
28	316080600		Shaft-push Button, Clock/timer/eoc				$ 49.41
28	316015103		Push Button, Clock/timer/eoc, Gray, (11)				$ 11.60
36	316023021		Knob-control, White, (4)		Appelez-nous	-
40	316086813		Panel-manifold, White		Appelez-nous	-
42	5303272839		Trim/vent		Appelez-nous	-
44	5303272831		Bracket-backguard, (2)		Appelez-nous	-
56	316074902		Deflector-flue, Black		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*61360	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
*61361	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
*61362	5303290188		Screw, 6 Ov Sdr, 8-18 X 1/2		Appelez-nous	-
*61363	316001446		Harness-wiring, Backguard		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
