SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body

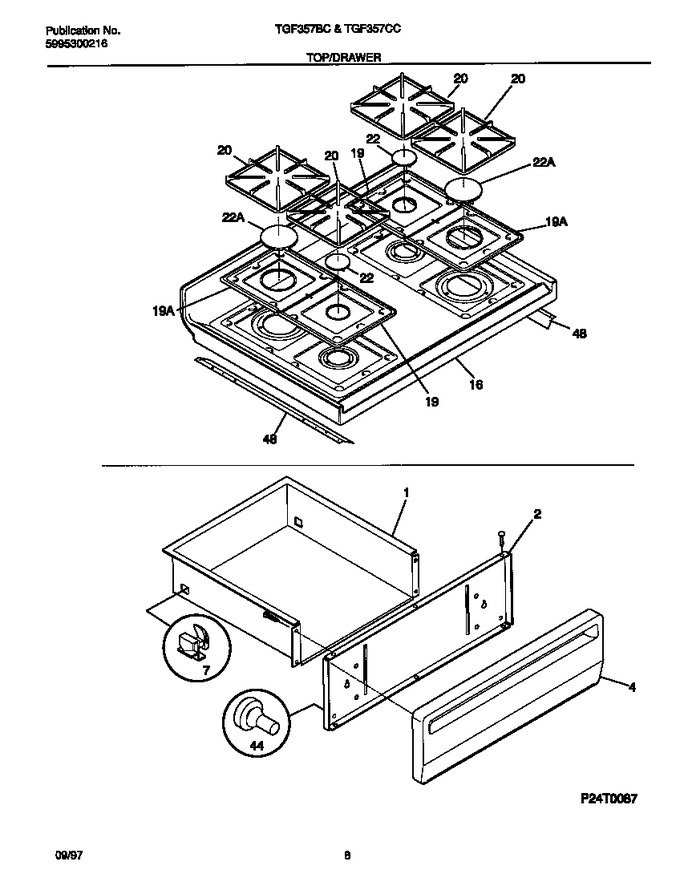

05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084406		Panel-drawer, Almond		Appelez-nous	-
4	316021113		Screw-drawer Pnl (not Illustrated)		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303307710		Main Top, Almond		Appelez-nous	-
19	316011419		Pan-burner, Black, Large, (2)				$ 102.90
19	316011415		Pan-burner, Black, Small, (2)				$ 53.60
20	316085201		Grate, (4)		Appelez-nous	-
22	316011014		Cap-burner, Matte Black, (4), Small		Appelez-nous	-
22	316011015		Cap-burner, Matte Black, Large, (2)		Appelez-nous	-
44	3131903		Bumper				$ 55.36
48	316077401		Shield-maintop		Appelez-nous	-
*67328	3203618		Rivet-top, Warning-plate		Appelez-nous	-
*67329	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*67330	316045000		Clip-wire, Harness, Main Top		Appelez-nous	-
*67331	316089600		Spacer-drawer, (2)		Appelez-nous	-
*67332	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*67333	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*67334	5303288574		Screw, Truss Head, 8-10 X 0.375, Handle, (3)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
